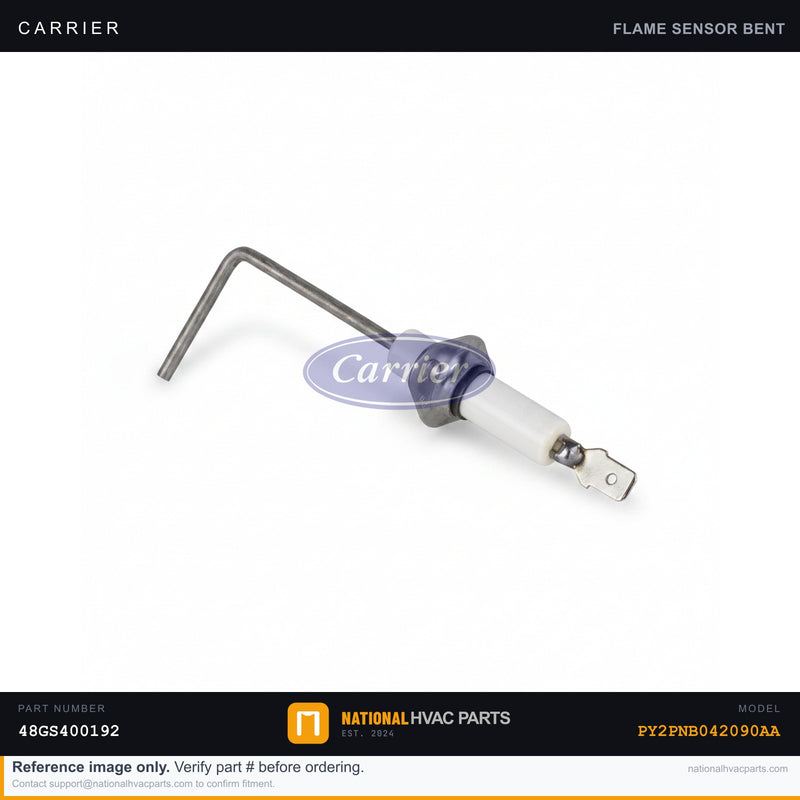

OEM Carrier Furnace Flame Sensor Rod Replacement for PY2PNB042090AA

The flame sensor is a single metal rod that confirms a flame is actually present after the burners light. It works by flame rectification—passing a tiny microamp current through the flame to ground—telling the control board it's safe to keep the gas valve open. When the rod gets coated with oxide or carbon, that signal weakens and the board shuts the gas off as a safety measure. Classic symptoms on your Carrier PY2PNB042090AA: the burners ignite and then go out after 3–7 seconds, the furnace short-cycles repeatedly, or you get blasts of unheated air followed by a lockout and a flashing fault code. This OEM sensor uses a Kanthal/stainless rod with a ceramic insulator block sized to sit correctly in the flame envelope. A clean, healthy sensor reads roughly 2–6 microamps DC of flame current; once it drops below about 0.5–1 µA the board drops out. The rod length, bend, and porcelain standoff are matched to the PY2PNB burner position so the tip sits in the hottest, most ionized part of the flame. Sensing is all about geometry and metallurgy. A generic rod that sits a few millimeters off, or uses a lower-grade alloy that oxidizes faster, produces a marginal microamp signal that works for a week then triggers nuisance lockouts. OEM places the tip exactly where the furnace expects it and holds the signal stable. Install difficulty: 1/5. Tools: 1/4" nut driver, fine steel wool or emery cloth, and a multimeter capable of reading DC microamps. #1 safety warning: turn off the gas AND the power before removing the sensor; never clean the rod with sandpaper—silica contaminates the surface and ruins conductivity. Ships same business day from our stocked U.S. warehouse on orders placed before 3 PM CST, backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY2PNB042090AA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
