OEM Carrier Gas Furnace Flame Sensor Replacement for PY2PNB024040AB

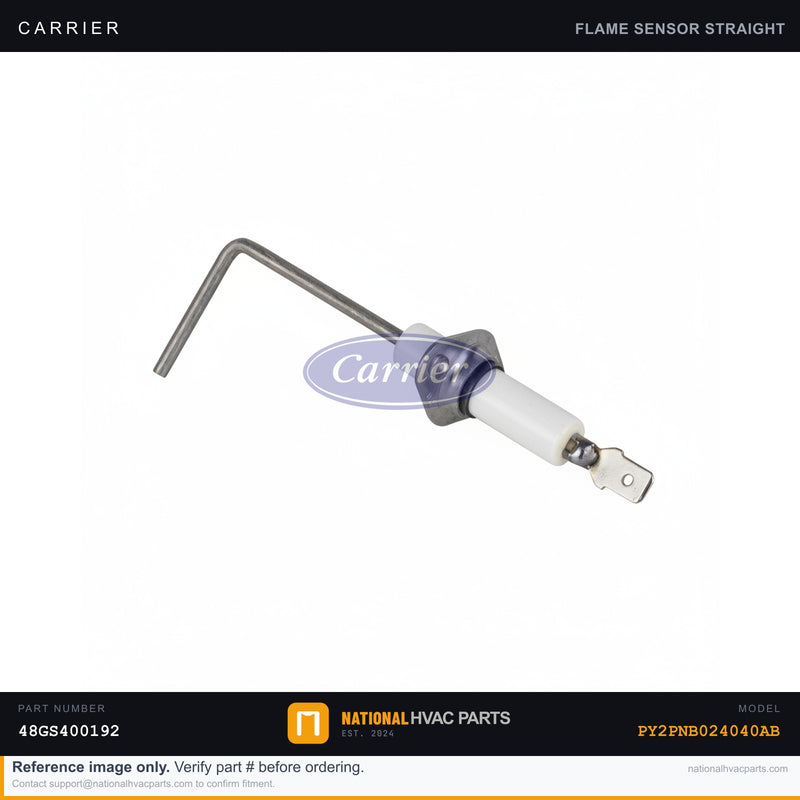

The flame sensor in your Carrier PY2PNB024040AB is a single metal rod that proves the burners actually lit after the igniter fired. It works by flame rectification: when the burner flame envelops the rod, a tiny DC microamp current flows to ground, telling the control board that combustion is present and it is safe to keep the gas valve open. When the rod gets coated with oxide or carbon, or its position drifts, that signal drops and the board shuts the gas off as a safety measure. The classic symptom is a furnace that lights normally, runs for three to seven seconds, then shuts the burners off and repeats — short-cycling that ends in a lockout and no heat. The sensor is a Kanthal-style rod on a ceramic insulator. A healthy flame signal on this furnace typically reads around 1 to 6 microamps on a meter set to DC microamps; anything under roughly 1 microamp will cause dropout. OEM rods are the correct length and angle so the flame fully wraps the tip for a strong, stable signal. Generic flame sensors are often the wrong rod length or use a different alloy, so they sit outside the flame envelope or build oxide faster — producing a weak signal that nuisance-trips the furnace even when it is firing perfectly. The matched Carrier rod restores a clean, in-spec microamp reading. Install difficulty: 1 of 5. Tools: 1/4-inch nut driver, a meter set to DC microamps, and fine steel wool or emery cloth to clean the tip. #1 safety warning: turn off the gas at the valve and kill the furnace breaker before removing the rod — it sits directly in the burner flame path. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY2PNB024040AB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
