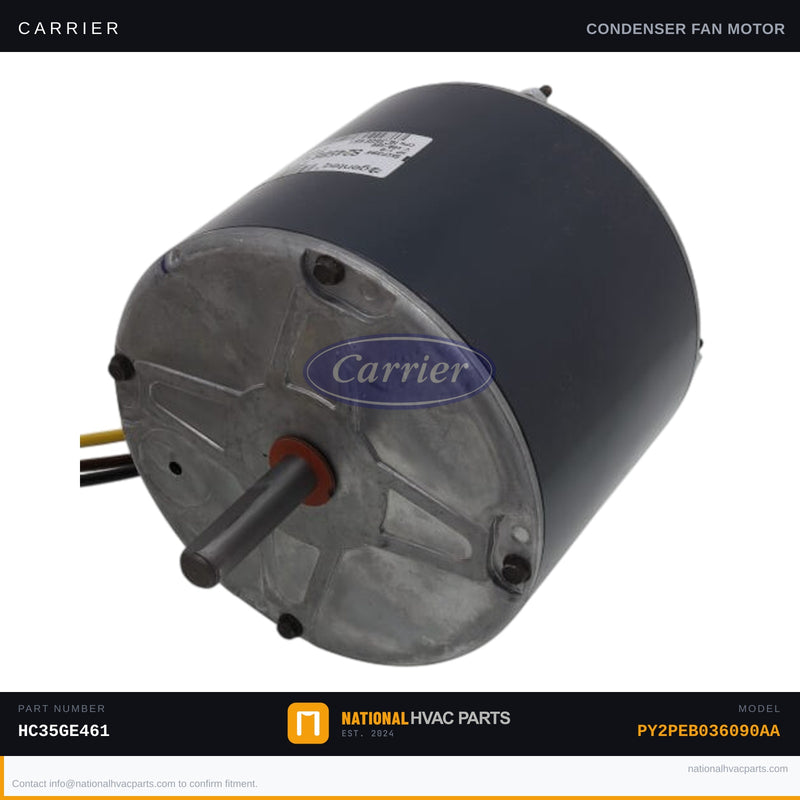

OEM Carrier Condenser Fan Motor 1/8 HP 460V 825 RPM for Model PY2PEB036090AA

This is the factory OEM replacement condenser fan motor (part number HC35GE461) for the Carrier PY2PEB036090AA packaged unit. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the condenser coil cannot shed heat effectively — resulting in high-pressure lockouts, compressor overheating, system short-cycling, or a completely non-spinning outdoor fan. Replacing it with the correct OEM part restores factory efficiency and protects the compressor from thermal damage.

• Specs: 1/8 HP | 400/460 VAC | 1-Phase | 825 RPM | 0.50 A | 50/60 Hz | 48 Frame | Clockwise rotation (CW) | GE Genteq model 5KCP39HFS245BS
• OEM vs Generic: This OEM motor is wound and balanced to Carrier factory tolerances, ensuring proper airflow CFM, correct amp draw, and matched bearing life. Aftermarket motors often deviate in RPM or rotation direction, risking blade interference or compressor pressure faults.
• Install difficulty: 3/5 — Disconnect power at the disconnect box before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire nuts or terminal connectors, multimeter, and work gloves. Always photograph the original wiring and fan blade orientation before removal. Pro tip: replace the run capacitor at the same time — a weak capacitor is a leading cause of premature motor failure.
• Warranty: 1-year OEM factory warranty. In-stock and ships same business day from our warehouse.

Compatibility: Designed as the direct OEM replacement for Carrier model PY2PEB036090AA. Verify voltage, HP, RPM, and rotation on your unit's data plate before ordering. Our HVAC parts specialists are available to confirm fitment — contact us before you order if you have any questions.
