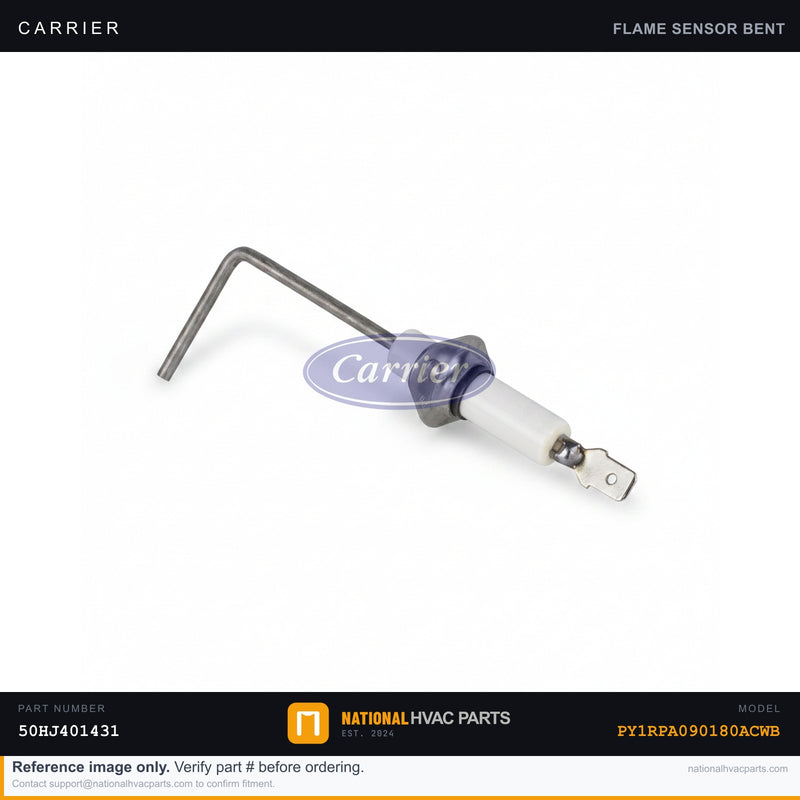

OEM Carrier Furnace Flame Sensor Rod for Model PY1RPA090180ACWB

The flame sensor is a single metal rod that sits in the burner flame and proves to the control board that a flame is actually present after ignition. It works on flame rectification: the flame conducts a tiny microamp current, and if the board doesn't see that current within a few seconds of the gas valve opening, it shuts the gas off as a safety measure. When the sensor's rod becomes coated with oxide or carbon, that current drops below threshold — so the classic symptom is a furnace that lights normally, runs for 3–7 seconds, then shuts the flame off and tries again, short-cycling repeatedly and eventually locking out with no heat. Specs: This is a single-rod flame rectification sensor with a porcelain insulator and a single spade or screw terminal. A healthy sensor should pass a small flame-sense current, typically in the 1–6 microamp range (read in series with a multimeter set to DC microamps); below roughly 1 µA the board will fault. The rod length, bend, and mounting position must match the OEM part so the tip sits correctly in the flame envelope. OEM vs Generic: Flame sensing is a safety function, and geometry matters. A generic sensor with the wrong rod length or bend can sit at the edge of the flame and read a marginal signal that nuisance-trips, while lower-grade alloys oxidize faster and fail sooner. The genuine Carrier sensor places the rod exactly where the burner was designed for it, giving a strong, stable signal. Install: Difficulty 1 of 5. Tools: 1/4" nut driver and a multimeter (DC microamps to verify flame current). #1 safety warning: shut off the gas supply and kill electrical power at the breaker before removing the sensor, and handle the porcelain insulator gently as it cracks easily. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1RPA090180ACWB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
