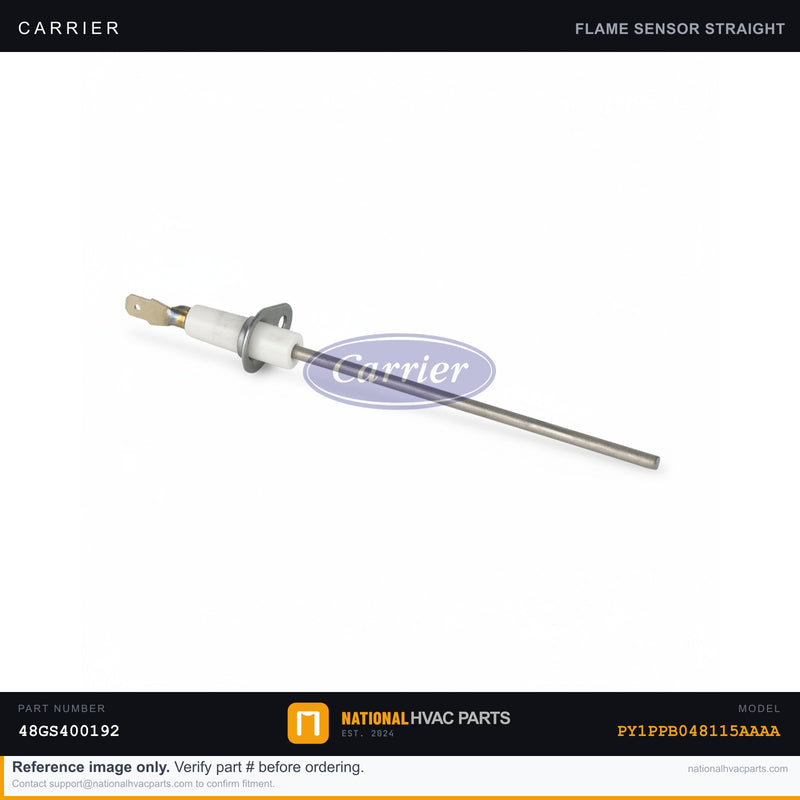

OEM Carrier Furnace Flame Sensor Replacement for PY1PPB048115AAAA

The flame sensor is a single metal rod that sits directly in the burner flame and verifies to the furnace control board that ignition actually occurred. It relies on flame rectification: a small microamp current passes through the flame to ground, signaling the board that it is safe to keep the gas valve open. As the rod oxidizes, carbons over, or cracks with age, the board loses sight of the flame and closes the gas valve within seconds as a built-in safety measure. Homeowners typically see a furnace that ignites for a few seconds then shuts off repeatedly (ignition short-cycling), weak or no heat at the vents, and frequently a hard lockout after three to five failed tries that requires cycling power to reset. This is a genuine OEM flame rectification rod made from high-temperature alloy with a porcelain insulator rated for continuous exposure to the burner. It produces the stable 1–6 microamp signal the Carrier/Bryant control board expects; a coated or worn rod drops below the roughly 0.5 µA dropout point and triggers lockout. The terminal and mounting bracket match the original so the sensing tip seats at the correct depth in the flame. Why OEM matters here: rod material and geometry determine signal quality. Generic sensors often use thinner, lower-grade alloy that oxidizes quickly and positions the tip at the wrong spot in the flame, giving a marginal reading that passes on install day but fails partway through the heating season. Install difficulty: 2 of 5. Tools: 1/4" or 5/16" nut driver, fine emery cloth, and a multimeter that reads microamps. Safety first: TURN OFF THE GAS supply and shut off power to the furnace before servicing. Ships same business day from our stocked warehouse on orders placed before 3 PM CST, backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PPB048115AAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
