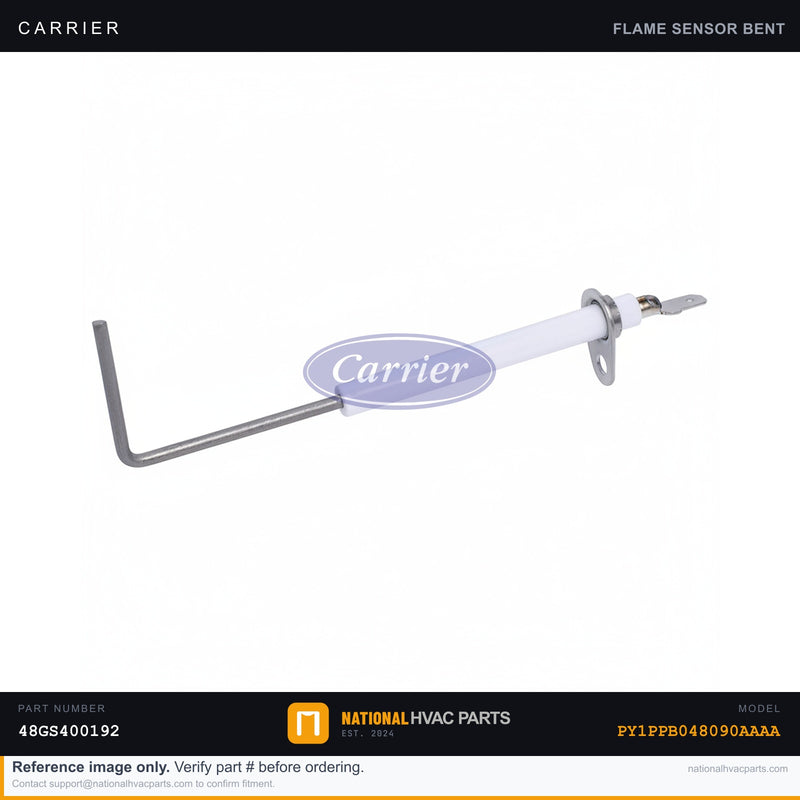

OEM Carrier Flame Sensor for PY1PPB048090AAAA Gas/Electric Unit

The flame sensor proves to your furnace control board that the burners have actually ignited. After the igniter glows and the gas valve opens, this rod sits in the flame and uses flame rectification to send a small electrical current back to the board, confirming combustion is present. When the rod oxidizes, carbons over, or cracks, the board stops detecting flame and closes the gas valve within seconds for safety. The homeowner sees short-cycling — the unit lights, runs a few seconds, then shuts down and blows cold air — along with repeated ignition lockouts and no heat during a cold snap. This OEM sensor is manufactured to Carrier's exact rod length and mounting bend so the tip lands in the proper zone of the flame, producing a steady microamp signal (typically 2-6 µA) the board reads with confidence. The Kanthal-grade element holds up to repeated heat cycling far better than economy rods. Why OEM matters here: aftermarket flame sensors are commonly made of thinner, lower-grade metal and may be a few millimeters off in length, leaving the tip outside the hottest part of the flame. That yields a weak, drifting microamp reading and nuisance lockouts even on an otherwise sound furnace. The OEM rod restores the signal margin the control sequence depends on. Install difficulty: 2 of 5. Tools needed: 1/4" nut driver, fine emery cloth to clean the tip, and a multimeter set to DC microamps to confirm flame signal. #1 safety warning: shut off the gas supply and cut power at the disconnect before removing the sensor — never work on an energized burner. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PPB048090AAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
