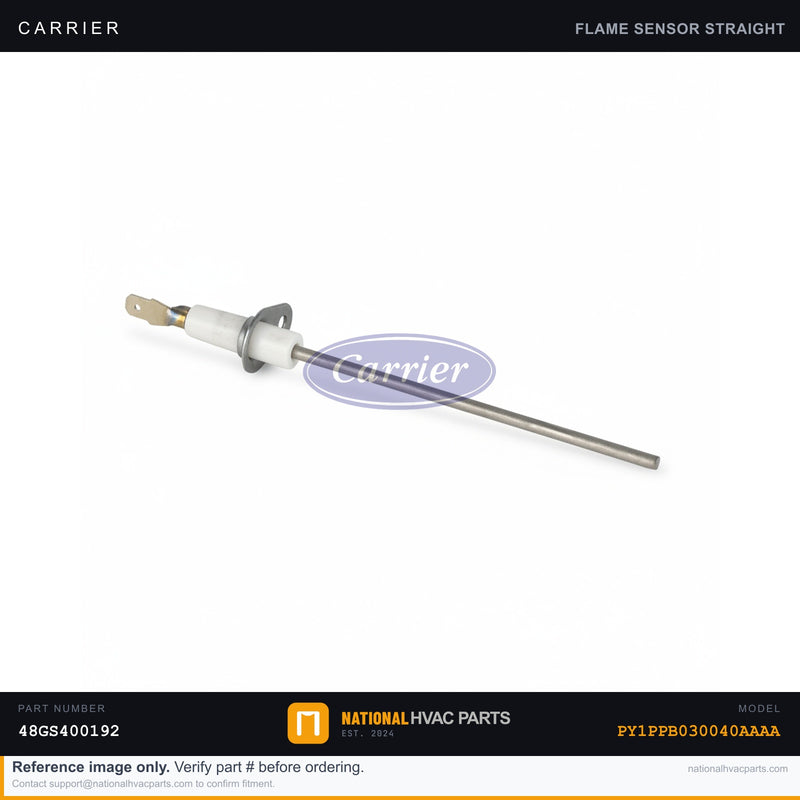

OEM Carrier Furnace Flame Sensor Replacement for PY1PPB030040AAAA

The flame sensor is a single metal rod that sits in the burner flame and confirms to the control board that a flame is actually present after the gas valve opens. It works by flame rectification — the lit flame conducts a tiny microamp current to ground. When the sensor gets coated in oxide or carbon, that current drops and the board can no longer 'see' the flame, so it shuts the gas valve within seconds as a safety measure. The classic symptom is a furnace that lights, runs for 3–7 seconds, then shuts off and tries again — short-cycling on ignition, often locking out after three or four failed tries and leaving the home with no heat. This OEM flame sensor is built with a high-temperature Kanthal sensing rod and the correct ceramic insulator and mounting bracket for this Carrier unit, so it reads a stable, strong microamp signal (typically 2–6 µA on a healthy flame). The terminal and rod geometry match the original exactly for proper flame immersion. Why OEM: the rod alloy and length determine how much rectified current the flame produces. Generic sensors often use lesser alloys or slightly different rod placement, giving weak or drifting microamp readings that trigger nuisance lockouts even when the burner is firing correctly. Install difficulty: 1/5. Tools needed: a 1/4-inch nut driver and fine emery cloth or a Scotch-Brite pad to clean the new rod's tip if needed. SAFETY: turn OFF the gas supply and kill power at the breaker before removing the sensor near the burner assembly. Never sand a sensor with sandpaper grit that leaves residue. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PPB030040AAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
