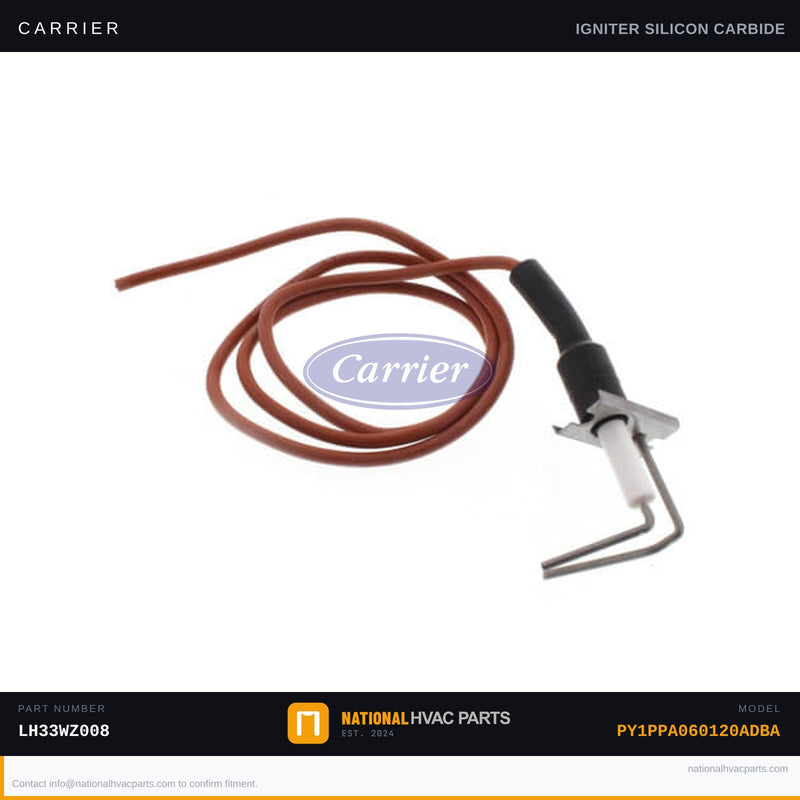

OEM Carrier Hot Surface Igniter for PY1PPA060120ADBA Furnace Unit

The hot surface igniter in your Carrier PY1PPA060120ADBA package unit is the component that glows red-hot to ignite the gas burners on each heat-call. The control board energizes it, it heats to roughly 2,000°F, then the gas valve opens and the flame lights off the igniter's surface. When an igniter ages or cracks, it's the single most common no-heat failure: you'll hear the inducer run and the gas valve click, but get no ignition, repeated retry cycles, and finally a hard lockout — often after the igniter has visibly cracked or developed hairline fractures. Carrier units in this class typically use a silicon nitride igniter, which is far more durable and thermal-shock resistant than the older brittle silicon carbide (Norton 271) style. A healthy silicon nitride igniter reads roughly 40-90 ohms cold; the older silicon carbide style reads lower but is far more fragile. Always confirm the resistance range and connector style match your board's output. OEM matters because igniter resistance is matched to the board's current output. A generic igniter with the wrong resistance won't reach ignition temperature — it under-glows and the gas valve closes before the burner lights — or it draws too much current and burns out prematurely. The factory Carrier igniter is calibrated to this control's timing and voltage. Install difficulty: 2 of 5. Tools: 1/4-in. nut driver and a multimeter to verify resistance. #1 safety warning: turn off the gas supply and kill power at the breaker before servicing, and never touch the igniter's ceramic element with bare fingers — skin oils create hot spots that cause premature failure. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PPA060120ADBA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
