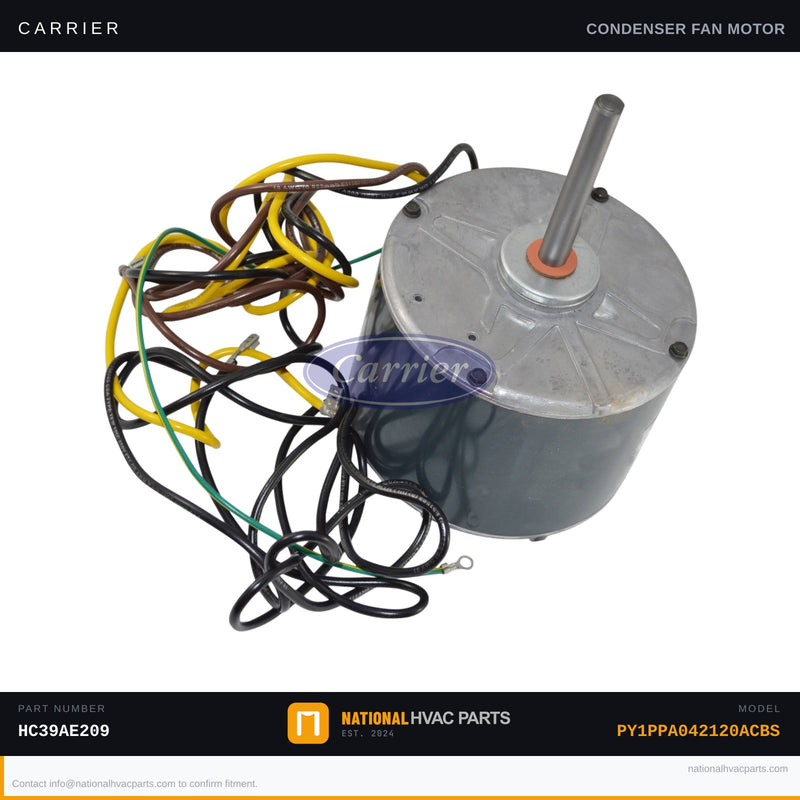

OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM 208/230V — HC39AE209 for Model PY1PPA042120ACBS

This factory OEM condenser fan motor is the direct, manufacturer-specified replacement for the Carrier PY1PPA042120ACBS split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to expel heat from the refrigerant. When the motor fails, the system overheats and trips on high-pressure lockout, or the outdoor unit runs with a seized or non-spinning fan — causing compressor damage if left unaddressed.

• Specs: 1/4 HP | 1100 RPM | 208/230V | 1-Phase | 60 Hz | 1.4A | GE Genteq OEM Model 5KCP39FGR560S | 1/2" x 3.5" shaft | CCW rotation (shaft end) | TEAO enclosure | Sleeve bearings | Automatic thermal reset
• OEM vs Generic: This is a genuine Carrier Factory Authorized Part (FAP), engineered to exact motor specifications for the PY1PPA042120ACBS. Generic aftermarket motors often run looser tolerances on RPM and amperage draw, risking compressor overload and shortened system life.
• Install difficulty: 3/5 — Disconnect and lock out power before starting. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, wire stripper, multimeter. Photograph all wiring before disconnecting leads. Always replace the run capacitor (5 MFD / 370V) at the same time — a weak or damaged capacitor is a leading cause of premature motor failure.
• Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse. Verify rotation direction and shaft dimensions against your existing motor data plate before ordering.

Compatibility: Designed for the Carrier PY1PPA042120ACBS split-system condenser. Cross-references include GE Genteq 5KCP39FGR560S, 5KCP39FGZ039S, Genteq 3S033, and Nidec US Motor K55HXKMU-0210. Confirm HP, RPM, voltage, shaft size, and rotation on your unit's data plate prior to ordering. Our parts specialists are available to verify fitment — order with confidence and get your system back online fast.
