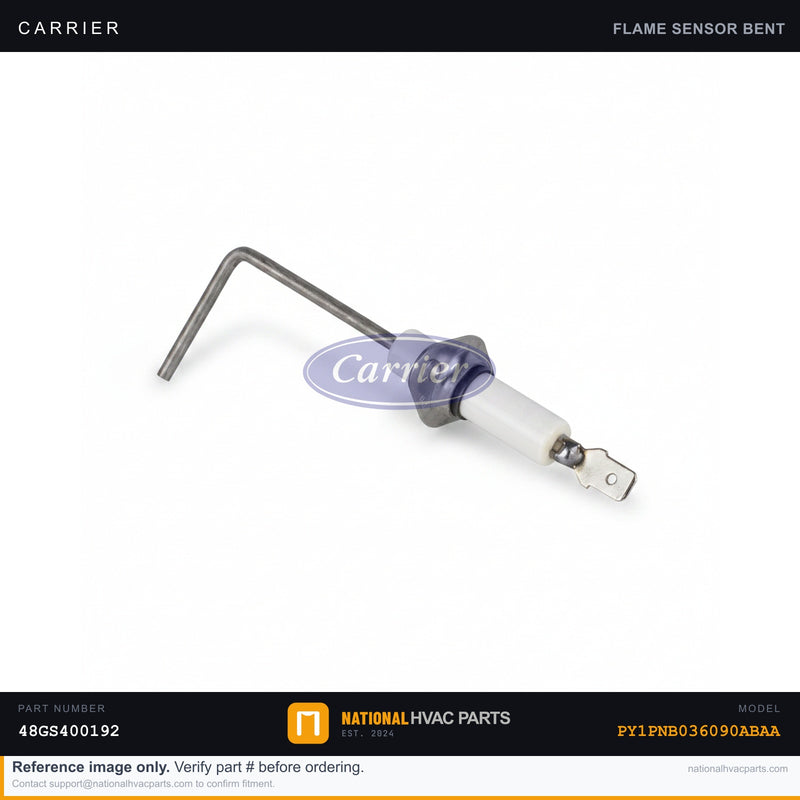

OEM Carrier Flame Sensor for PY1PNB036090ABAA Gas Package Unit

The flame sensor is the safety device that confirms your Carrier PY1PNB036090ABAA package unit actually lit a flame after the gas valve opened. It works by flame rectification — a tiny microamp current passes through the flame to ground, telling the control board fire is present. When the sensor is coated with oxide or silica, that current drops, the board can no longer 'see' the flame, and it shuts the gas valve within seconds as a safety response. The tell-tale homeowner symptom: the burners ignite, stay lit for 3–7 seconds, then shut off — over and over (short-cycling on flame loss), leaving you with no heat. Specs: This genuine OEM flame sensor is a single Kanthal/stainless flame-rectification rod on a ceramic insulator with the correct mounting flange and terminal for this unit. A healthy sensor passes roughly 1–6 microamps of DC flame current; the OEM rod length and material place the tip in the correct part of the flame envelope to read that current reliably. OEM vs Generic: Flame-sense is a tiny, fragile signal. Generic rods with the wrong length, alloy, or insulator resistance read a weaker or noisier microamp signal, causing nuisance lockouts even when the burners are firing perfectly. The OEM sensor matches the rod geometry and insulation the board's flame-proving threshold was calibrated for. Install difficulty: 1 of 5. Tools: 1/4" nut driver, fine steel wool or an emery cloth (to clean, not sand), and a multimeter capable of reading microamps. SAFETY: Turn OFF the gas supply and the electrical disconnect before removing the sensor — never service the burner area with gas live. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PNB036090ABAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
