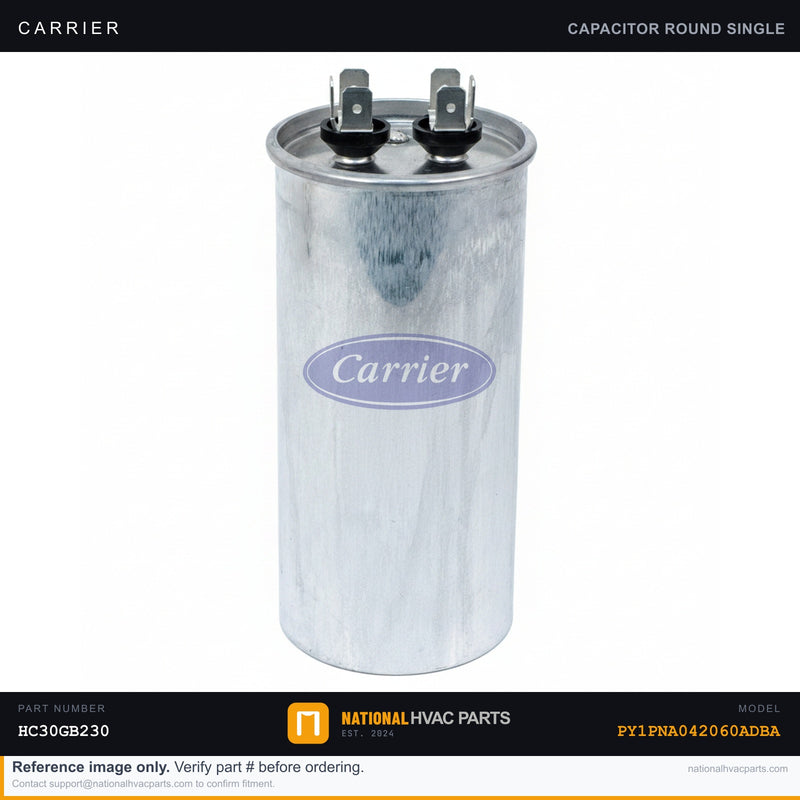

OEM Carrier Run Capacitor for PY1PNA042060ADBA Packaged Unit

The run capacitor in your Carrier PY1PNA042060ADBA delivers the steady electrical charge that keeps the compressor and condenser fan motor running at full efficiency, providing the phase shift a single-phase motor needs once it is up to speed. As it degrades you will hear the unit buzzing or humming without starting, see the outdoor fan stall or spin slowly, feel warm air at the registers, or watch the compressor short-cycle and trip the breaker as it overheats. A domed, bulging, or oil-leaking top means the capacitor is done. Built to OEM specification, this dual-run capacitor holds a tight plus-or-minus 5 percent tolerance on its rated MFD value at 370/440 VAC. The HERM and FAN terminals are matched to the factory motor loads so both the compressor and condenser fan draw exactly the current they were designed for. Aftermarket capacitors commonly ship with plus-or-minus 10 to 20 percent tolerance and use cheaper film and thinner foil that drift further out of spec as they age. Even a 10 percent MFD error forces the compressor windings to run hotter than designed, and heat is what kills compressors — by far the costliest repair on the system. Matching OEM tolerance is the cheapest insurance you can buy for that compressor. Install difficulty: 2 of 5. Tools: insulated 1/4-inch nut driver, needle-nose pliers, insulated screwdriver, and a multimeter with capacitance mode. SAFETY: the capacitor stores a dangerous charge even with the power off — shut the breaker and discharge both terminals through an insulated screwdriver or a 20k-ohm resistor before touching anything, and photograph the wiring first. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PNA042060ADBA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
