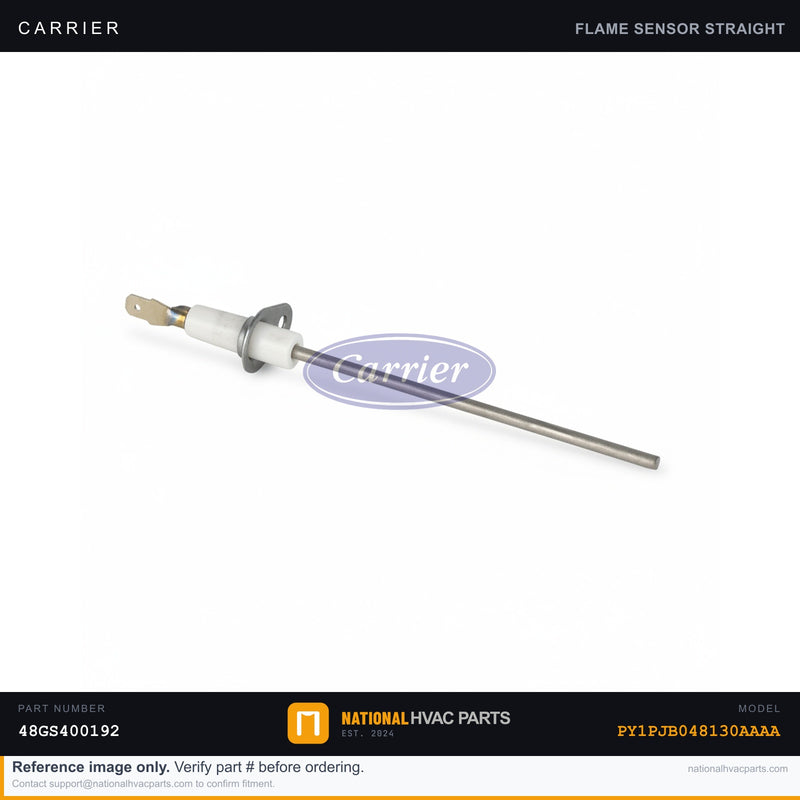

OEM Carrier Flame Sensor Replacement for PY1PJB048130AAAA

The flame sensor in your Carrier PY1PJB048130AAAA is a safety device that confirms a flame is actually present after the igniter lights the burners. It works through flame rectification: the control board sends a small AC microamp signal down the rod, and the ionized flame conducts it to ground, proving the burner is lit. When the sensor is coated in oxidation or fails, the board can't detect flame and shuts the gas valve within seconds — so you'll notice the furnace igniting, running for 3–5 seconds, then short-cycling repeatedly with no sustained heat, often locking out after several failed tries. This OEM flame sensor uses the correct Kanthal rod alloy, length, and ceramic insulator so it sits precisely in the burner flame and reads the microamp signal Carrier's board expects (typically 2–6 µA of steady flame current). The mounting bracket and spade terminal match the factory harness exactly. OEM matters because flame sensing is a millionths-of-an-amp measurement. Generic sensors with the wrong rod material, length, or insulator resistance read a weaker or noisier signal, causing nuisance lockouts even when the burner is healthy — and a marginal sensor that fails to prove flame is a genuine safety issue. Install difficulty: 1 of 5. Tools: 1/4" nut driver, fine emery cloth (never sandpaper) to clean the rod, and a multimeter set to DC microamps to verify flame current. #1 safety warning: turn off the gas at the shutoff valve and kill power to the furnace before removing the burner-area sensor. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PJB048130AAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
