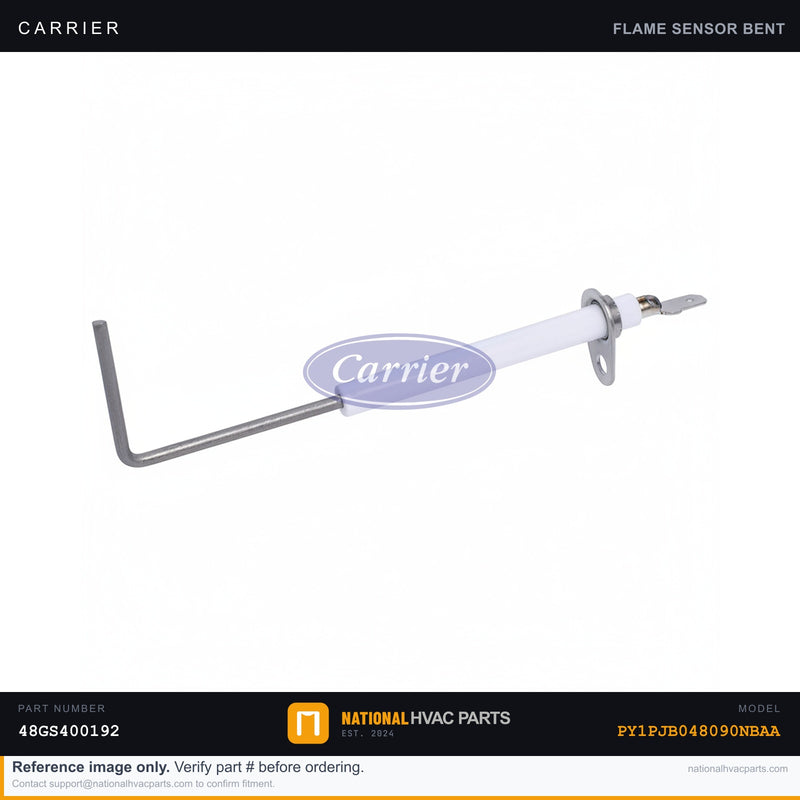

OEM Carrier Flame Sensor Replacement for PY1PJB048090NBAA Furnace

The flame sensor is the safety component that proves your Carrier PY1PJB048090NBAA's burner actually lit. It's a single metal rod that sits in the flame and uses flame rectification — a tiny microamp DC current that flows only when fire is present — to tell the control board to keep the gas valve open. When the rod oxidizes or the signal drops, the board can't confirm flame and shuts the gas off as a safety measure. Homeowners notice the burner igniting for a few seconds then going out, repeated short-cycling on a heat call, no heat with the blower still running, or a lockout after several failed tries. Specs: This OEM flame sensor uses a Kanthal/stainless rod precisely positioned to intersect the burner flame and is matched to your furnace's microamp threshold — most Carrier boards expect a steady 1–6 µA flame signal, and the rod geometry and insulator are sized for that reading. A reading below roughly 0.5 µA means it's time to clean or replace. Why OEM matters: Generic sensors are often built with looser rod placement and cheaper insulators that crack and leak current to ground, producing an unstable microamp signal that triggers nuisance lockouts even when the flame is healthy. The OEM rod's exact position and high-temperature ceramic insulator deliver the clean, repeatable signal the board is calibrated to trust. Install — Difficulty 1/5: Tools needed are a 1/4" nut driver, fine emery cloth, and optionally a multimeter set to DC microamps to verify the signal. #1 SAFETY WARNING: turn off the gas supply and shut off power at the breaker before removing the sensor from the burner assembly. Do not sand the rod with sandpaper grit — use light emery cloth only. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PJB048090NBAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
