OEM Carrier Flame Sensor for PY1PEB048090NBAA Gas Furnace Heat

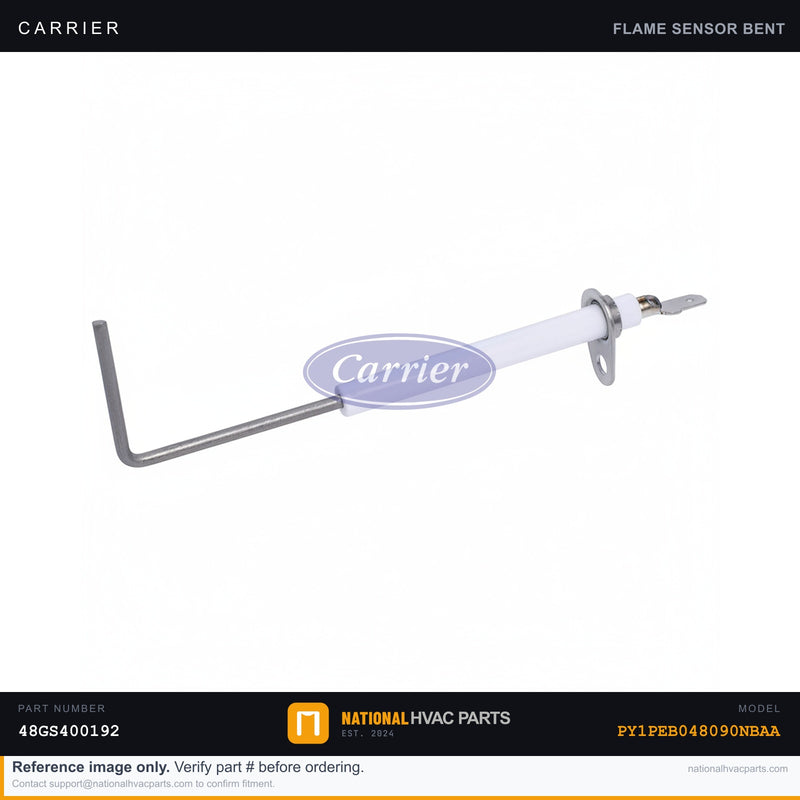

The flame sensor is a safety probe that proves a flame is actually present once the burners light. After ignition, the control board sends a tiny microamp signal through the sensor rod; the flame conducts that current to ground (a process called flame rectification), telling the board it is safe to keep the gas valve open. The most common failure isn't a broken sensor — it's a flame sensor coated in oxide and carbon buildup. When the signal drops, homeowners notice the burners lighting for a few seconds and then shutting off, repeated short-cycling, no sustained heat, or a lockout code after several failed flame-proving attempts. A clean, healthy flame sensor typically reads around 1.5–5 microamps of flame current during a heat call (measured in series with a microamp meter); below ~0.5 µA the board will drop out. The sensor itself is a simple Kanthal rod on a ceramic insulator — match the rod length, bend, and bracket so it sits correctly in the flame envelope. OEM matters because rod geometry and insulator quality determine a stable flame signal. Generic sensors often use thinner rods or lower-grade insulators that drift, crack, or build oxide faster, causing intermittent dropouts that are maddening to diagnose. A correct Carrier sensor sits exactly in the flame path and holds a steady microamp reading. Install difficulty: 1/5. Tools: 1/4" nut driver, fine emery cloth or steel wool (to clean, if reusing), multimeter with microamp scale. SAFETY: Shut off the gas and kill power at the breaker before servicing; never sand a sensor with sandpaper grit that leaves residue. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PEB048090NBAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
