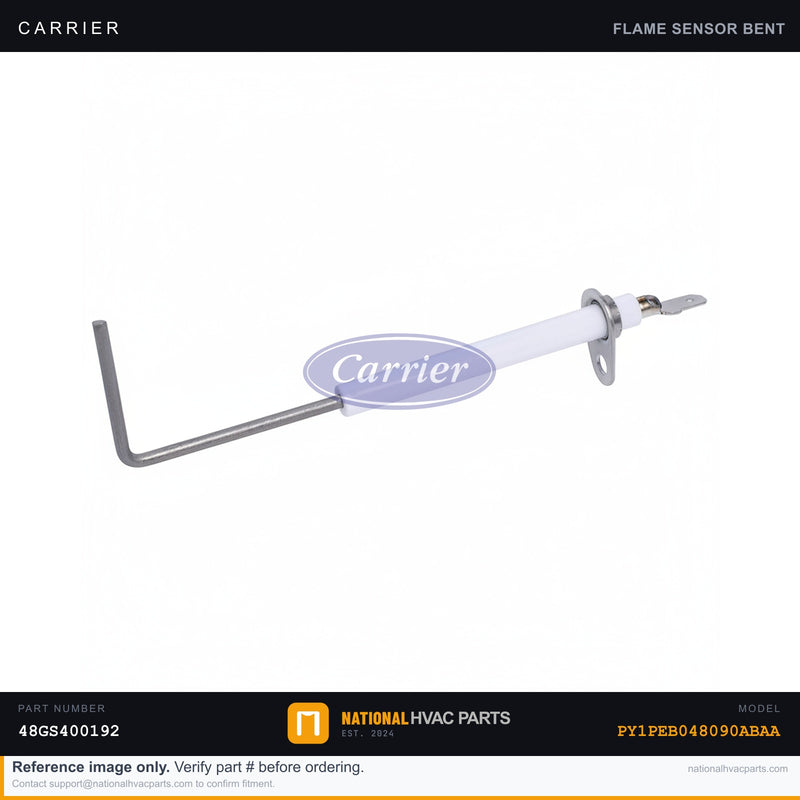

OEM Carrier Flame Sensor Replacement for Furnace PY1PEB048090ABAA

The flame sensor is a single metal rod that sits directly in the burner flame and confirms to the furnace control board that a flame is actually present after the igniter fires. It works through flame rectification — the hot flame conducts a tiny microamp current that tells the board to keep the gas valve open. Over time the rod develops a silica and oxide coating from combustion byproducts, the signal weakens, and the board can no longer "see" the flame. When that happens you'll notice the burners light for a few seconds and then shut off, the furnace short-cycles, you get intermittent no-heat, or the unit goes into a hard lockout after three or four failed attempts and won't restart until it's reset. This is a direct-fit OEM flame sensor for the PY1PEB048090ABAA. A healthy sensor reads a flame current in the 1–6 microamp range (measured in DC microamps in series with the sensor wire); anything below about 0.5 µA is marginal. The rod is a high-temperature alloy with a porcelain insulator rated for continuous burner-flame exposure, and the OEM terminal and mounting bracket match the factory burner spacing so the tip lands in the correct part of the flame envelope. Position is everything with a flame sensor. OEM sensors place the rod at the exact insertion depth and angle the burner was designed for; generic universal rods often sit too shallow or use thinner alloy that oxidizes faster, giving you a weak signal within a season and the same lockouts you started with. The OEM insulator also resists cracking, which prevents the shorts-to-ground that get misdiagnosed as a bad board. Install difficulty: 2/5. Tools: 1/4" nut driver, fine emery cloth or steel wool, and a multimeter with a DC microamp range to verify flame current. #1 safety warning: turn off the gas and kill power at the furnace switch or breaker before removing the sensor. Never sand a new rod — clean only. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PEB048090ABAA. Always verify the part number against your unit's data plate before ordering.
