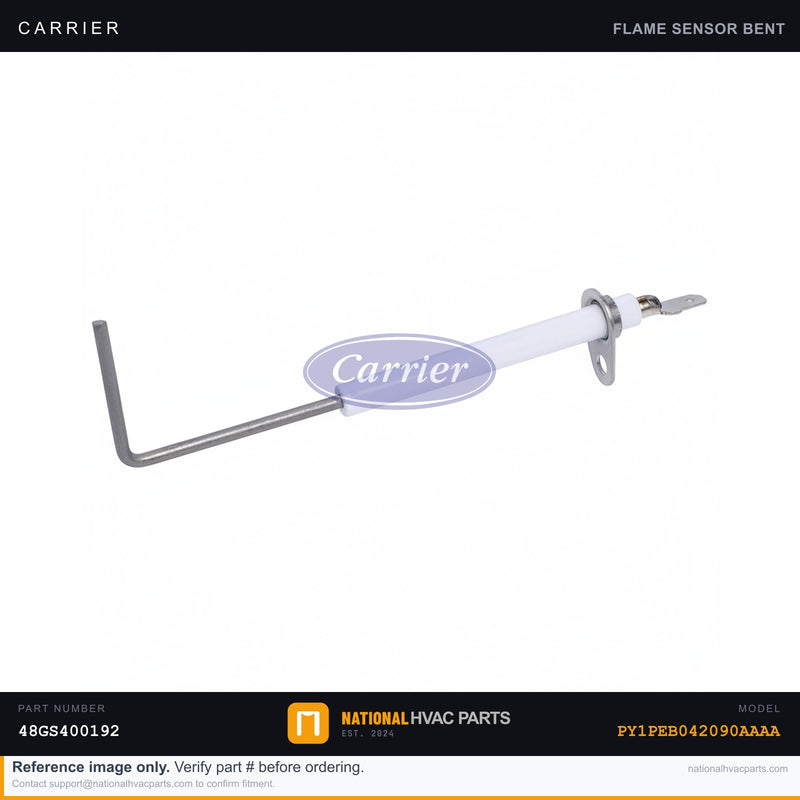

OEM Carrier Flame Sensor Replacement for Furnace PY1PEB042090AAAA

After the igniter lights the burners, the flame sensor proves the flame is actually burning so the control board will keep the gas valve open. It's a single rod bathed in the flame, and it works by flame rectification — the flame passes a few microamps of DC current that the board reads as "flame present." As soot and oxide build up on the rod, that current drops until the board can no longer confirm a flame and shuts the gas off as a safety response. Typical symptoms on the PY1PEB042090AAAA: the burners ignite and then die within 3–5 seconds, the furnace short-cycles, you get intermittent no-heat, or the control locks out after repeated failed trials. A good flame signal on this furnace falls in the 1–6 microamp range, measured in series on the sensor lead with a meter set to DC microamps; readings drifting under about 0.5 µA mean it's time to replace. The OEM rod uses a high-temp alloy and a crack-resistant porcelain insulator, with the factory bracket geometry that positions the tip correctly in the flame. A flame sensor only works if the rod sits in the right part of the flame. OEM holds the exact length, bend, and insertion depth; universal rods often sit shallow or use thinner wire that oxidizes fast, so the signal fades within a single heating season. A quality insulator also avoids the ground-shorts that get misdiagnosed as a failed board, saving you from replacing parts that were never bad. Install difficulty: 2/5. Tools: 1/4" nut driver, fine emery cloth or steel wool, and a multimeter with a DC microamp range. #1 safety warning: shut off the gas and cut power at the furnace switch or breaker before pulling the sensor. Clean the rod lightly if reusing — never sand a new one. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PEB042090AAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
