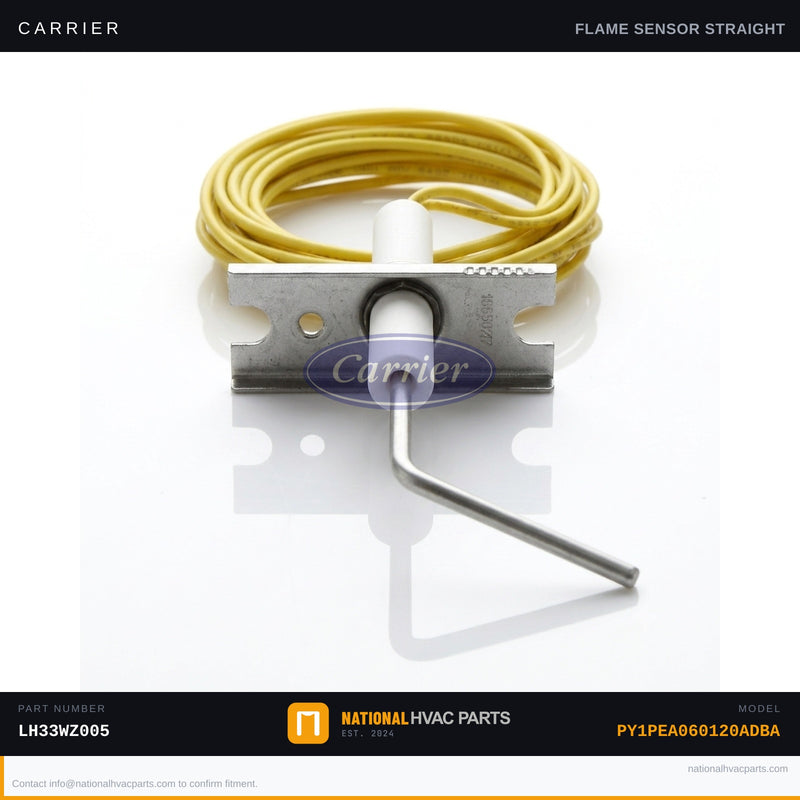

OEM Carrier Flame Sensor Assembly LH33WZ005 for Model PY1PEA060120ADBA

This OEM Carrier flame sensor assembly (part# LH33WZ005) is the factory-specified replacement for the Carrier PY1PEA060120ADBA packaged unit. The flame sensor — also called a flame rod — monitors the burner during each ignition cycle using a small DC microamp current passed through the flame. When the control board detects that signal, it confirms combustion is active and holds the gas valve open. A failed or contaminated flame sensor causes the furnace to light, run briefly for 5–8 seconds, then shut down and lock out — often with a diagnostic fault code indicating "flame lost" or "no flame sense." Cleaning may temporarily restore function, but a failed rod or cracked ceramic insulator requires full replacement.

• Part Number: LH33WZ005 | Factory Authorized Parts (FAP) | Carrier OEM | Includes 64.5" wire lead with connector — direct plug-in replacement, no splicing required
• OEM vs Generic: OEM flame sensors are manufactured to Carrier's exact microamp sensitivity threshold and ceramic insulator spec. Generic sensors often exhibit drift in sensitivity that causes nuisance lockouts or — more critically — delayed flame detection, which compromises safety system response time.
• Install Difficulty: 2/5 — Single mounting screw and one wire connector. Tools needed: 1/4" or 5/16" nut driver, needle-nose pliers. Always disconnect power and shut off gas before servicing. Locate sensor in the burner box near the heat exchanger opening; the rod extends into the burner flame path.
• Warranty: 1-year OEM factory warranty. In stock — ships same business day from our warehouse.

Compatibility: Engineered for Carrier model PY1PEA060120ADBA. Verify your existing part number against the unit's data plate or wiring diagram before ordering — our parts specialists are available to confirm fitment at no charge. Order by 3PM local time for same-day dispatch.
