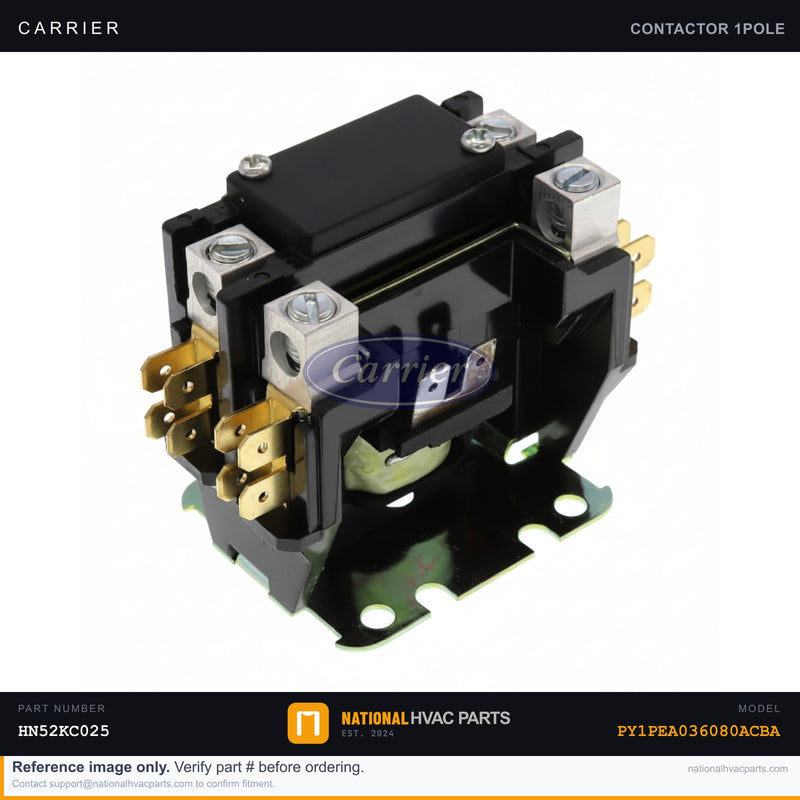

OEM Carrier Single Pole Condenser Contactor for PY1PEA036080ACBA

The contactor is the high-voltage switch that powers the compressor and condenser fan in your Carrier PY1PEA036080ACBA package unit. When the thermostat calls for cooling, 24V from the control board energizes the contactor coil, pulling the contacts closed to feed line voltage to the compressor. Because those contacts make and break under heavy electrical load thousands of times a season, they pit, burn, and eventually weld or fail open. Symptoms include a unit that won't cool at all, a loud hum or buzzing from the contactor, the outdoor fan and compressor failing to start (or refusing to shut off because the contacts welded shut), and chattering as the coil struggles to pull in. This is a definite-purpose contactor with a 24V control coil. Match the pole configuration (single- or double-pole) and the FLA/amp rating to your unit; the contacts and coil are sized for the compressor's locked-rotor inrush current. Worn contacts read high resistance or arc visibly across the gap. Why OEM: generic contactors often use undersized contacts and lighter-gauge coils that pit and weld far faster under compressor inrush, leading to repeat failures and, when welded closed, a compressor that can't be shut off — a serious risk. The genuine Carrier contactor is rated for the exact load and coil voltage your unit expects. Install difficulty: 2 of 5. Tools: 1/4" nut driver, insulated screwdriver, multimeter, and a photo of the wiring before removal. #1 safety warning: KILL THE DISCONNECT and breaker, then verify zero voltage with your meter — line terminals stay live and capacitors nearby can hold a lethal charge. Ships same business day from our stocked warehouse on orders before 3 PM CST. 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY1PEA036080ACBA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
