OEM Carrier Condenser Fan Motor 1/12 HP 800 RPM for PH4RNG018000BBAA
Carrier

OEM Carrier Condenser Fan Motor 1/12 HP 800 RPM for PH4RNG018000BBAA

SKU: CARRIE-PH4RNG018000BBAA-FAN_MOTOR-HC31GE229 Brand: Carrier
✓ Guaranteed to fit PH4RNG018000BBAA — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

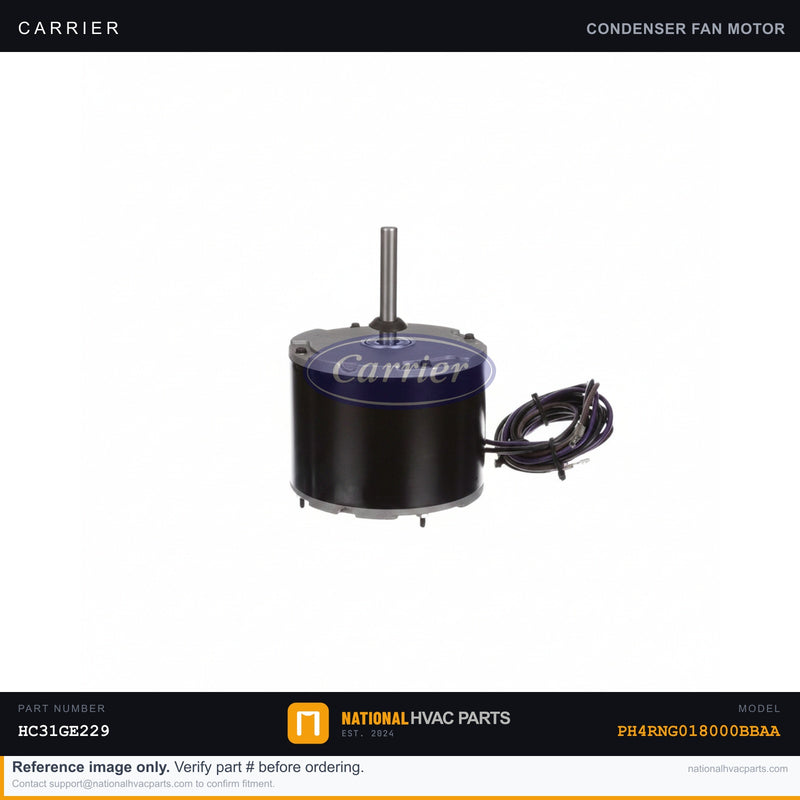

OEM Carrier Condenser Fan Motor 1/12 HP 800 RPM for Model PH4RNG018000BBAA

This OEM condenser fan motor is the factory-specified replacement for the Carrier PH4RNG018000BBAA heat pump / condensing unit. Originally cataloged as HC31GE229 and manufactured by GE (Genteq), this motor drives the condenser fan blade that draws air across the refrigerant coil to dissipate heat. When the motor fails, the condenser loses airflow, refrigerant pressure climbs, and the system will trip on high-pressure lockout, short-cycle, or simply stop cooling altogether. A failed or seized condenser fan motor is one of the most common causes of a unit that runs but doesn't cool.

  • Specs: 1/12 HP | 800 RPM | 208/230 VAC | 0.50 A | 60 Hz | 1-Phase | Frame 48Y (5-5/8" diameter) | Rotation: Counter-Clockwise (shaft up) | 3-wire leads
  • OEM Part Numbers: HC31GE229 / HC31GE229A (superseded by HB32GR229, then HB32GQ230) | GE/Genteq cross-reference: 5KCP39EFY445AS | ICP/Heil/Tempstar cross-reference: 1173716
  • OEM vs Generic: This is a genuine Carrier OEM motor wound to exact factory tolerances for correct RPM, amperage draw, and thermal protection class. Aftermarket motors frequently run off-speed, stressing the compressor and shortening system life. Always replace the run capacitor simultaneously — an out-of-tolerance capacitor is the leading cause of premature motor failure.
  • Install Difficulty: 3/5 — Disconnect and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and needle-nose pliers. Photograph all wiring before disconnecting. Note fan blade pitch and orientation before removal; incorrect reinstallation reverses airflow. Capacitor replacement strongly recommended at same time.
  • Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse.

Compatibility: Direct OEM replacement for Carrier PH4RNG018000BBAA condensing / heat pump units. Also fits select Bryant, Payne, ICP, Heil, and Tempstar models sharing the HC31GE229 motor specification. Verify HP, RPM, voltage, and rotation on your unit's data plate before ordering. Our fitment team is available to confirm compatibility before you buy — no guesswork required.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Carrier PH4RNG018000BBAA?
Yes. This is the factory-specified OEM fan motor for the Carrier PH4RNG018000BBAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Carrier PH4RNG018000BBAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
