What HP motor do I need for my Carrier unit?

The correct replacement for Carrier model PH4ANG060000BAAA is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Carrier equipment which lists the model number PH4ANG060000BAAA.

My AC fan is not spinning. What part do I need?

A fan that does not spin, spins slowly, or makes grinding or squealing noises needs a new motor. Grinding means the bearings have failed. Squealing means the bearings are dry. No spin with a humming sound means the capacitor may be the issue. Check the motor capacitor before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne systems too?

Many Carrier parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

OEM Carrier Condenser Fan Motor 1/4 HP 825 RPM for PH4ANG060000BAAA

Carrier

OEM Carrier Condenser Fan Motor 1/4 HP 825 RPM for PH4ANG060000BAAA

Name: OEM Carrier Condenser Fan Motor 1/4 HP 825 RPM for PH4ANG060000BAAA
Brand: Carrier
SKU: CARRIE-PH4ANG060000BAAA-FAN_MOTOR-HC39GE242
Price: 350.00 USD
Availability: InStock

SKU: CARRIE-PH4ANG060000BAAA-FAN_MOTOR-HC39GE242 Brand: Carrier

✓ Guaranteed to fit PH4ANG060000BAAA — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

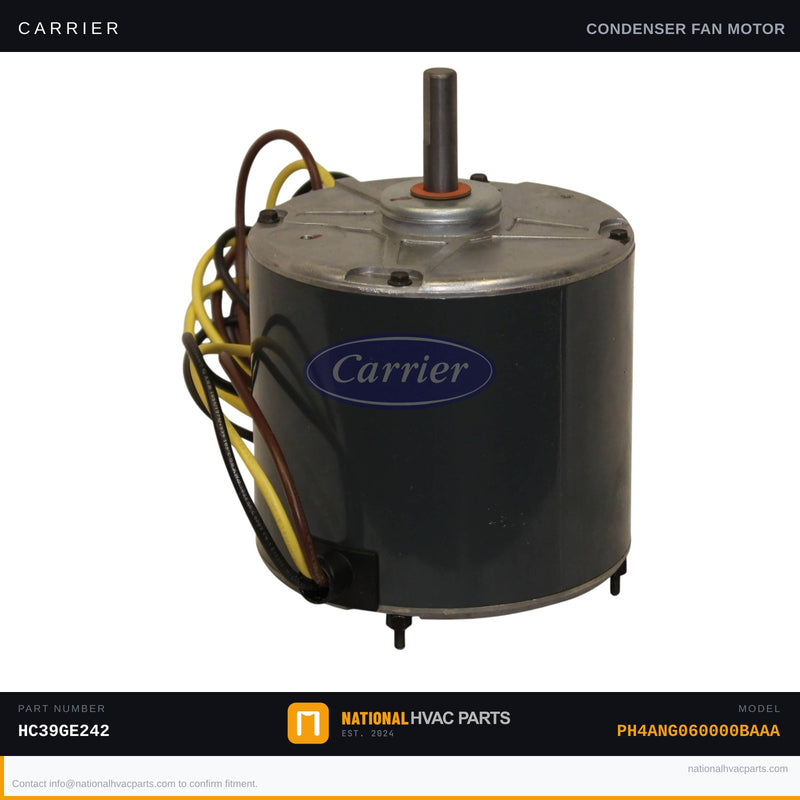

OEM Carrier Condenser Fan Motor 1/4 HP 825 RPM for Model PH4ANG060000BAAA (HC39GE242)

This OEM-spec condenser fan motor is the factory-matched replacement for the Carrier PH4ANG060000BAAA heat pump condenser unit, replacing original part number HC39GE242 (GE model 5KCP39LFY534AS). The condenser fan motor drives the outdoor fan blade, pulling air across the refrigerant coil to reject heat. When this motor fails, your system will overheat, trip the high-pressure limit, or simply produce warm air from the supply registers. Common failure signs include a humming condenser with a stationary fan blade, intermittent operation in high ambient temperatures, or a seized shaft with a burning smell.

Specs: 1/4 HP | 208/230VAC | 825 RPM | 1.20 Amps | 60 Hz | 1-Phase | 48Y Frame | Clockwise rotation (shaft up) | Replaces HC39GE242 / HC39GE242A / 5KCP39LFY534AS
OEM vs Generic: OEM motors are wound and balanced to factory tolerances, ensuring correct airflow CFM and compressor head pressure for the PH4ANG060000BAAA refrigerant circuit. Generic motors may deviate in RPM or amperage draw, leading to premature compressor wear and void equipment warranties.
Install difficulty: 3/5 — Requires disconnecting high-voltage wiring and safely removing the fan blade from the motor shaft. Tools needed: multimeter, adjustable wrench or hub puller, wire stripper, and needle-nose pliers. Always lock out/tag out the disconnect before beginning. Note: Replace the run capacitor at the same time — a capacitor out of tolerance is a leading cause of motor burnout.
Warranty: 1-year OEM warranty coverage. Ships same business day from our climate-controlled warehouse.

Compatibility: Designed for the Carrier PH4ANG060000BAAA 5-ton heat pump condenser. Verify HP, RPM, voltage, and rotation direction on your unit's data plate before ordering. Original part HC39GE242 has been superseded — this listing ships the current OEM-authorized replacement. Questions about fitment? Our HVAC parts specialists verify compatibility before every order — call or chat today.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $99
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

OEM Carrier Condenser Fan Motor ...

$350.00

Frequently Asked Questions

Does this Fan Motor fit my Carrier PH4ANG060000BAAA?

Yes. This is the factory-specified OEM fan motor for the Carrier PH4ANG060000BAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the fan motor on my Carrier PH4ANG060000BAAA?

Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.

My AC fan isn’t spinning. What part do I need?

Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne too?

Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Carrier fan motor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
