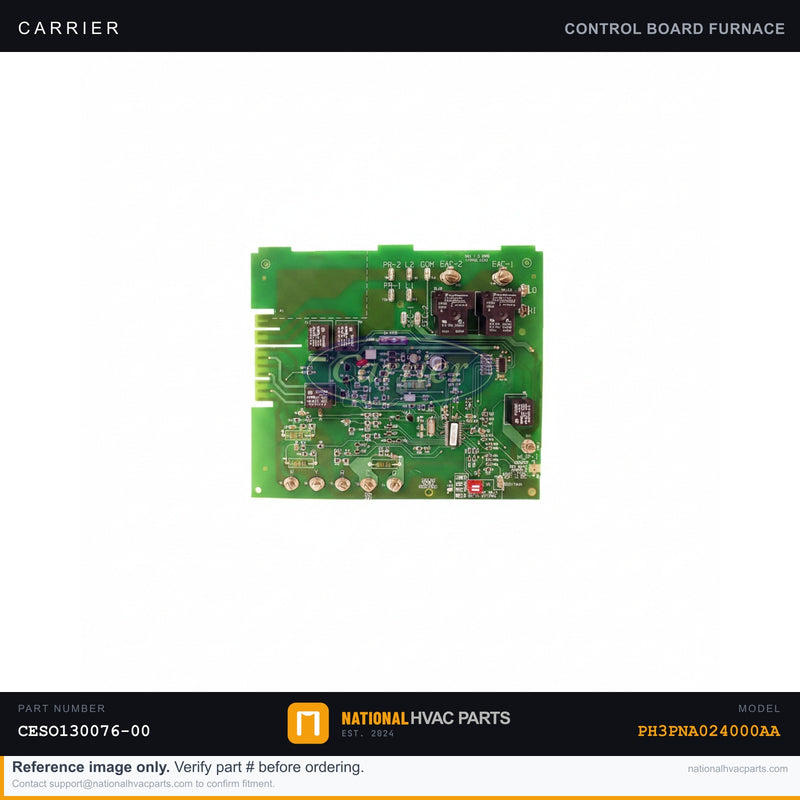

OEM Carrier Control Board CESO130076-00 for Model PH3PNA024000AA

This OEM integrated control board (part number CESO130076-00) is the factory-specified replacement for the Carrier PH3PNA024000AA packaged heating and cooling unit. The control board serves as the central command center of your system — orchestrating ignition sequencing, blower motor operation, inducer control, fault code diagnostics, and communication between the thermostat and all downstream components. Common failure symptoms include the system going into hard lockout, erratic or intermittent heating and cooling cycles, failure to ignite, blower running continuously, or the unit displaying fault codes that cannot be cleared by a reset.

  • Specs: OEM part number CESO130076-00 | Factory-matched control logic for Carrier PH3PNA024000AA | 24V control circuit compatible | Multi-speed blower and inducer outputs | Integrated LED fault code diagnostics
  • OEM vs Generic: This is a genuine OEM Carrier board — not an aftermarket substitute. OEM boards carry pre-programmed firmware calibrated to your unit's exact staging, timing, and safety lockout parameters. Generic boards may use different timing logic, risking nuisance lockouts or voided equipment warranties.
  • Install difficulty: 4/5 — Control board replacement requires shutting off 240V power and disconnecting the gas supply before work begins. Photograph or label every wiring harness before removal. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter, and zip ties. Professional installation is recommended if you are not experienced with HVAC electrical systems.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed before cutoff ship same business day from our stocked warehouse.

Compatibility: Engineered for the Carrier PH3PNA024000AA packaged unit. Always verify your existing board's part number (printed on the board label) matches CESO130076-00 before ordering. Our HVAC parts specialists are available to confirm fitment — call or chat before you buy. In stock and ships today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Control Board fit my Carrier PH3PNA024000AA?
Yes. This is the factory-specified OEM control board for the Carrier PH3PNA024000AA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the control board on my Carrier PH3PNA024000AA?
Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.
My HVAC system is completely dead. What could be wrong?
Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.
Is this control board compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier control board?
OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
