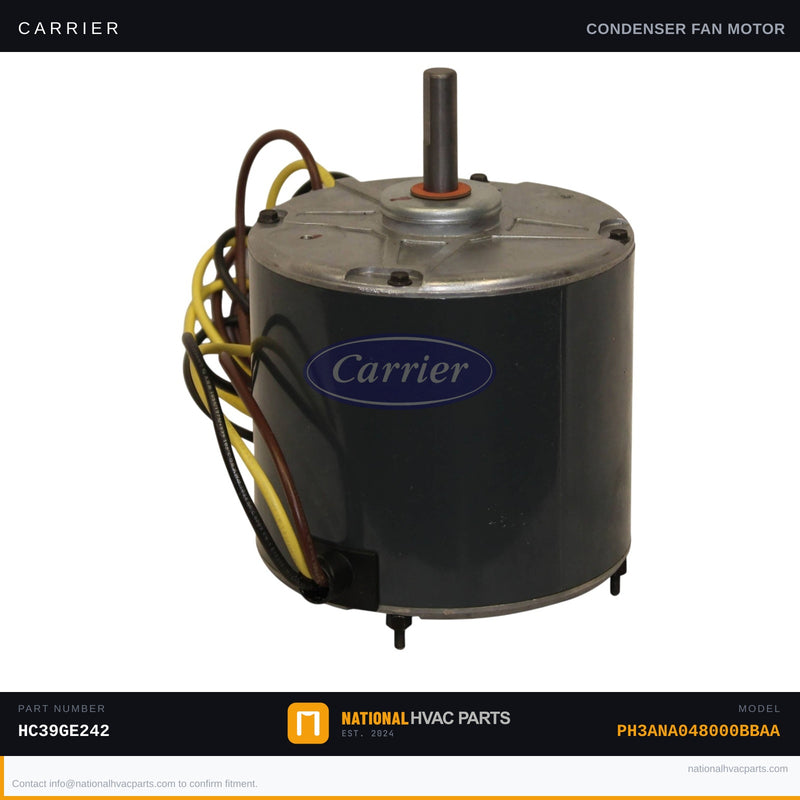

OEM Carrier Condenser Fan Motor 1/4 HP 208/230V 825 RPM for Model PH3ANA048000BBAA

This OEM condenser fan motor (part # HC39GE242, superseded by HB39GQ232) is the factory-specified replacement for the Carrier PH3ANA048000BBAA packaged unit. The condenser fan motor drives the fan blade that pulls ambient air across the condenser coil, dissipating heat from the refrigerant and keeping system pressures in check. When this motor fails, the condenser coil overheats, high-pressure safeties trip, and the system shuts down — leaving you without cooling on the hottest days of the year. Common failure symptoms include the condenser fan not spinning, the unit short-cycling on high-pressure lockout, or loud grinding/humming from the fan section.

• Specs: 1/4 HP | 208/230V | 1-Phase | 60 Hz | 825 RPM | 1.20 Amp | 48Y Frame | CWLE rotation (shaft-end view) | GE/Genteq 5KCP39LFY534AS cross-reference
• OEM vs Generic: OEM motors are wound and balanced to exact factory specifications, ensuring correct RPM, amp draw, and thermal protection ratings. Generic aftermarket motors often deviate in shaft diameter, rotation, and thermal cutout thresholds — risking premature failure and voiding system warranties.
• Install difficulty: 3/5 — Disconnect power and lock out before beginning. Tools needed: 5/16" and 3/8" nut drivers, needle-nose pliers, wire strippers, and a multimeter. Always photograph wiring harness and blade pitch before removal. Inspect the fan blade for cracks or imbalance before reinstalling — an unbalanced blade is a leading cause of premature motor bearing failure.
• Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Direct OEM replacement for Carrier model PH3ANA048000BBAA packaged units. Original part number HC39GE242 has been superseded by HB39GQ232 — both are fulfilled as the current OEM part. Verify HP, RPM, voltage, and rotation direction on your unit's motor data plate before ordering. Our HVAC parts specialists are available to confirm fitment — contact us before you order if you have any questions.
