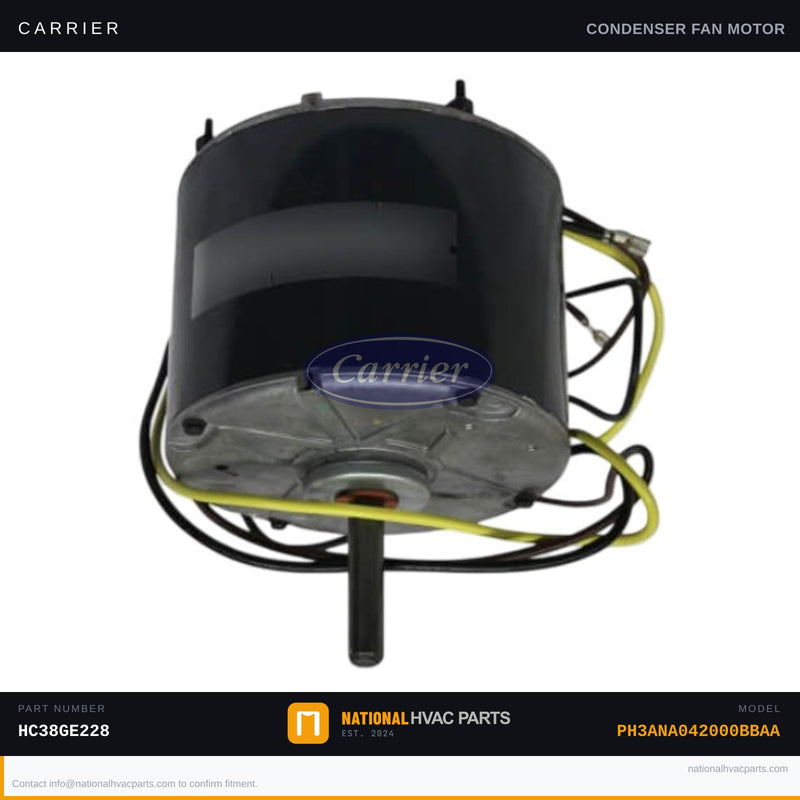

OEM Carrier Condenser Fan Motor 1/5 HP 208-230V 810 RPM for Model PH3ANA042000BBAA

This OEM condenser fan motor is the factory-specified replacement for the Carrier PH3ANA042000BBAA split-system heat pump. The condenser fan motor drives the outdoor fan blade, drawing ambient air across the condenser coils to expel heat absorbed from the refrigerant. When this motor fails, the outdoor unit will run briefly before the high-pressure safety cuts power, or the system may continuously trip on high-head pressure — leaving your home without cooling or heating. Common symptoms include the outdoor fan blade not spinning, a humming sound with no rotation, or the unit overheating and shutting down within minutes of startup.

• Specs: 1/5 HP | 208–230V | 810 RPM | 1-Phase PSC | Clockwise rotation (shaft down) | 48Y Frame | Requires 5 µF / 370V run capacitor | OEM Part Numbers: HC38GE228 (primary), HC37GE228 (superseded)
• OEM vs Generic: This is a genuine Carrier Factory Authorized Part, manufactured to exact torque, speed, and thermal-overload specifications. Generic aftermarket motors often deviate in RPM tolerance and winding insulation class, which can shorten compressor life by reducing proper airflow across the condenser coil.
• Install difficulty: 3/5 — Disconnect all power and discharge any capacitors before beginning. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, wire stripper, multimeter. Photograph all wiring connections and note fan blade pitch direction before removal. Always replace the run capacitor at the same time to prevent premature motor re-failure.
• Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse — order by 3 PM local time.

Compatibility: Designed as a direct OEM replacement for Carrier PH3ANA042000BBAA split-system heat pumps. Also fits a wide range of Carrier, Bryant, and Payne condenser models sharing the HC38GE228 / HC37GE228 motor specification — verify HP, voltage, RPM, and rotation direction on your unit's data plate before ordering. Our fitment team is available to confirm compatibility before you buy.
