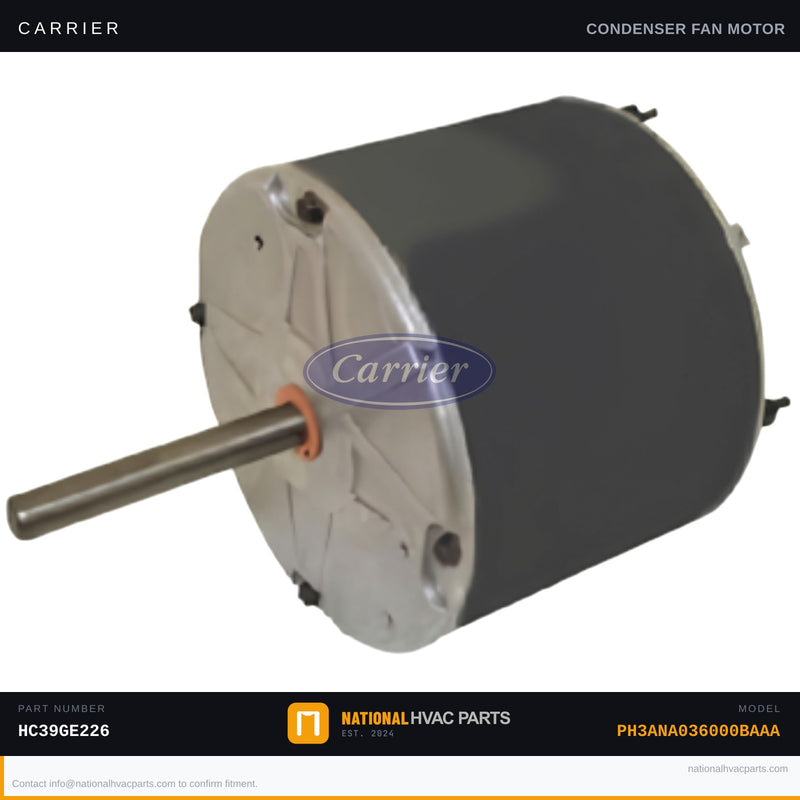

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V for Model PH3ANA036000BAAA

This OEM-spec condenser fan motor is the factory-matched replacement for the Carrier PH3ANA036000BAAA split-system condenser, carrying OEM part number HC39GE226. The condenser fan motor drives the outdoor fan blade, pulling ambient air across the condenser coil to reject heat and keep the refrigerant cycle running efficiently. When this motor fails, the condenser coil overheats, triggering high-pressure lockout, short-cycling, or a complete system shutdown — leaving your space without cooling. Replacing it promptly prevents costly compressor damage.

• Specs: 1/4 HP | 208-230V, 60 Hz, 1-Phase | 1,100 RPM | Frame 48 | Clockwise rotation (shaft-end view) | 0.5" diameter × 4.23" shaft | Stud mountable | Requires 10 MFD 370V run capacitor (sold separately)
• OEM vs Generic: OEM-spec motors are wound and balanced to factory tolerances, ensuring correct RPM, airflow CFM, and amp draw. Off-brand motors frequently run outside spec RPM, reducing heat rejection efficiency and accelerating compressor wear over time.
• Install difficulty: 3/5 — Disconnect power and discharge the run capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, multimeter, wire stripper. Photograph all wiring connections before removal. Verify rotation direction and shaft orientation before securing the motor mount.
• Warranty: 1-year manufacturer warranty on OEM-spec units. In-stock orders ship same business day from our warehouse.

Compatibility: Direct replacement for Carrier model PH3ANA036000BAAA condensers specifying OEM part HC39GE226 (1/4 HP, 1100 RPM, 208-230V, Frame 48, CW rotation). Cross-references include HC39GE226A, HB39GQ230, HC39GQ230, and Genteq 3S047. Always verify voltage, HP, RPM, and rotation on your unit's data plate before ordering. Have questions about fitment? Our HVAC parts specialists verify compatibility before you buy — reach out today and we'll ship your order the same day.
