OEM Carrier Transformer 75VA 208/240/480V–24V for PH2PNB024000AA
Carrier

OEM Carrier Transformer 75VA 208/240/480V–24V for PH2PNB024000AA

SKU: CARRIE-PH2PNB024000AA-TRANSFORMER-HT01BD242 Brand: Carrier
✓ Guaranteed to fit PH2PNB024000AA — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

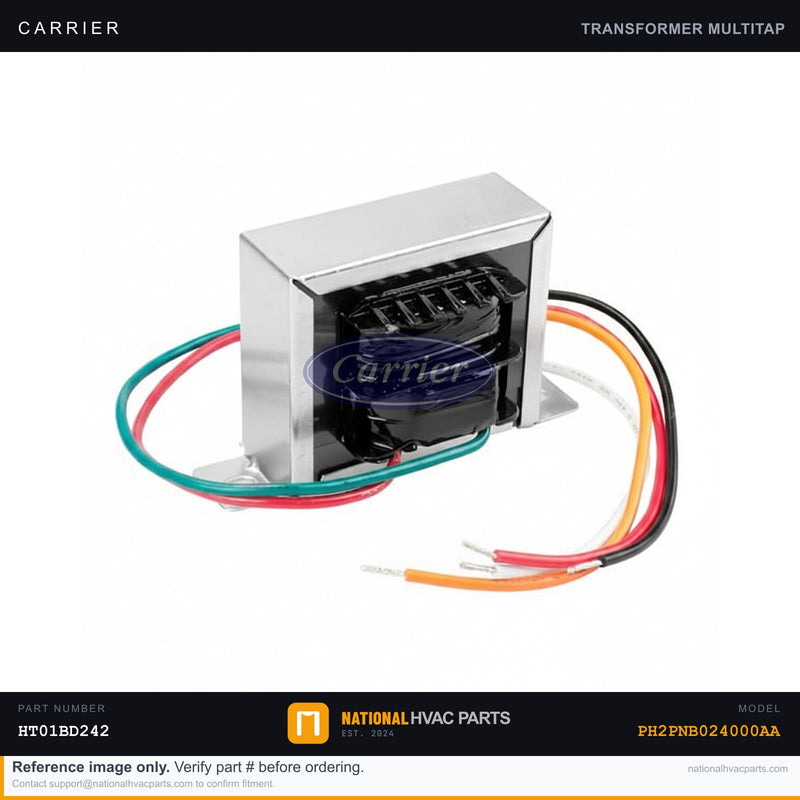

OEM Carrier Transformer 75VA 208/240/480V to 24VAC for Model PH2PNB024000AA

The Carrier HT01BD242 is the factory-specified OEM control transformer for the PH2PNB024000AA packaged heat pump unit. Its job is critical: it steps high-voltage line power (208, 240, or 480V primary) down to the 24VAC signal voltage that powers every low-voltage control circuit in your system — the thermostat, contactor coil, gas valve, and control board alike. When this transformer fails, the entire control circuit goes dead. Symptoms include a completely unresponsive system, a tripped fuse on the control board, or a unit that won't respond to any thermostat command.

  • Specs: 75VA power rating | Primary: 208/240/480V multi-tap | Secondary: 24VAC | Frequency: 50/60Hz | Foot-mount configuration | OEM part number HT01BD242
  • OEM vs Generic: OEM transformers from Carrier are wound to exact VA tolerances, ensuring the control circuit never browns out under peak load. Generic transformers frequently run undersized VA ratings, causing nuisance resets and premature contactor coil burnout.
  • Install difficulty: 3/5 — Line-voltage wiring is involved. Always disconnect power at the breaker and confirm zero voltage with a multimeter before proceeding. Tools needed: flathead and Phillips screwdrivers, multimeter, wire nuts or spade connectors. Photograph all wiring before removal. If unfamiliar with line-voltage work, consult a licensed HVAC technician.
  • Warranty: 1-year OEM factory warranty. In-stock units ship same business day from our warehouse when ordered by cutoff time.

Compatibility: Direct OEM replacement for Carrier model PH2PNB024000AA packaged heat pump. Also cross-references to a wide range of Carrier, Bryant, Payne, Tempstar, Heil, and ICP equipment using the same 75VA multi-tap transformer specification — always verify primary voltage tap and VA rating on your unit's data plate before ordering. Questions about fitment? Our HVAC parts specialists verify compatibility before you buy.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Carrier PH2PNB024000AA?
Yes. This is the factory-specified OEM transformer for the Carrier PH2PNB024000AA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Carrier PH2PNB024000AA?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
