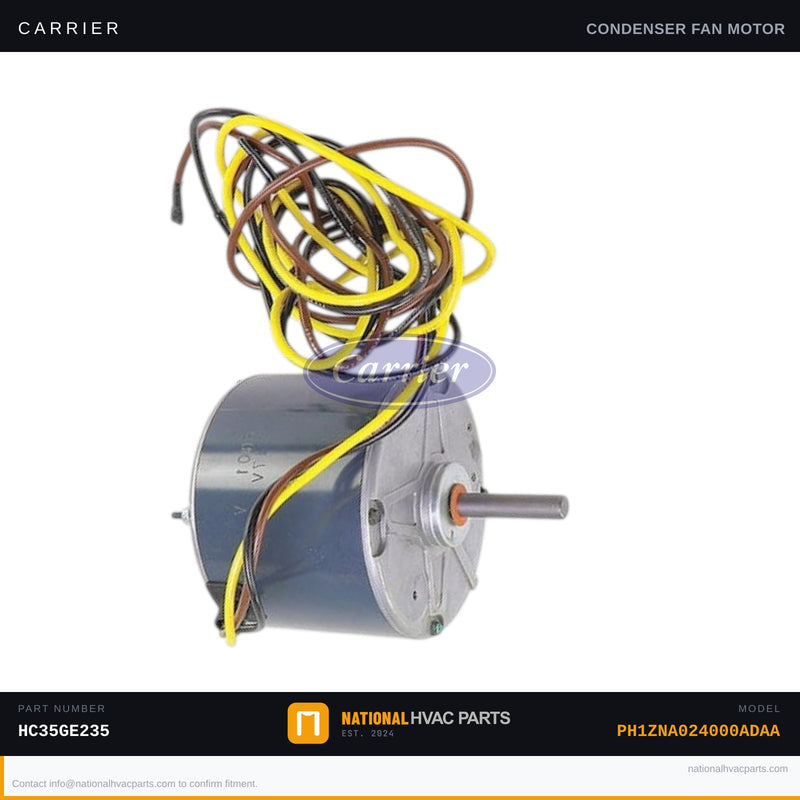

OEM Carrier Condenser Fan Motor 1/8 HP 825 RPM for Model PH1ZNA024000ADAA

This is the factory OEM replacement condenser fan motor for the Carrier PH1ZNA024000ADAA heat pump system, carrying OEM part number HC35GE235. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat during cooling mode and absorb heat during heating mode. When this motor fails, symptoms include a condenser unit that runs but produces no airflow, a system that short-cycles on high-pressure lockout, or an outdoor fan that hums but refuses to spin — often caused by a seized bearing, failed winding, or a run capacitor that has taken the motor with it.

• Specs: 1/8 HP | 208–230 VAC | 60 Hz | Single Phase | 825 RPM | 0.90A Full Load Amps | Clockwise Rotation | PSC (Permanent Split Capacitor) Motor Type | Frame 48Y | 5-5/8" Diameter | Replaces GE Genteq 5KCP39FFS244CS
• OEM vs Generic: This is a genuine Carrier factory-authorized part (HC35GE235), wound and balanced to exact OEM tolerances. Generic motors frequently deviate in RPM and amp draw, risking compressor head pressure faults and shortened service life. Always match HP, RPM, voltage, rotation direction, and shaft diameter before substituting.
• Install Difficulty: 3/5 — Disconnect all power and lock out before servicing. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter (to verify capacitor and windings), and wire nuts. Photograph all wiring before disconnecting leads. Note fan blade pitch and orientation before removal — incorrect reinstallation reverses airflow. Pro tip: Replace the run capacitor at the same time; a weak capacitor is the #1 cause of premature motor failure.
• Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Direct OEM replacement for Carrier model PH1ZNA024000ADAA heat pump condensing unit. Verify RPM, HP, voltage, and rotation on your unit's data plate before ordering — specifications must match exactly. Cross-references: HC35GE235A, GE/Genteq 5KCP39FFS244CS. Questions about fitment? Our HVAC parts specialists verify compatibility before you order — call or chat today.
