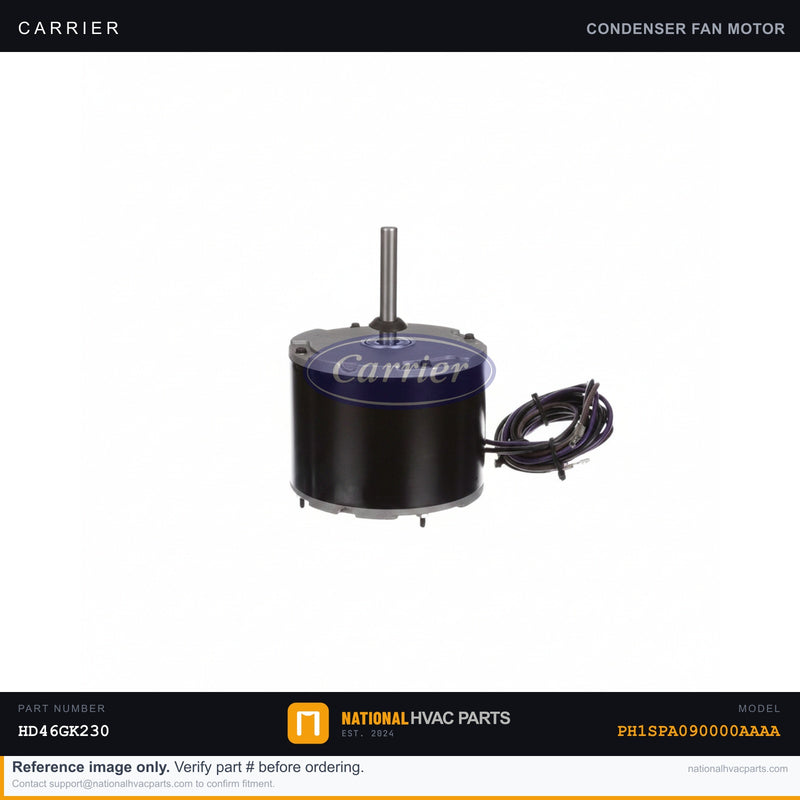

OEM Carrier Condenser Fan Motor 1 HP 208/230V 3Ph — PH1SPA090000AAAA
Carrier

OEM Carrier Condenser Fan Motor 1 HP 208/230V 3Ph — PH1SPA090000AAAA

SKU: CARRIE-PH1SPA090000AAAA-FAN_MOTOR-HD46GK230 Brand: Carrier
✓ Guaranteed to fit PH1SPA090000AAAA — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

OEM Carrier Condenser Fan Motor 1 HP 208/230V 3-Phase for Model PH1SPA090000AAAA

This OEM Factory Authorized condenser fan motor is the direct factory-specified replacement for the Carrier PH1SPA090000AAAA packaged unit. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat from the refrigerant and protecting the compressor from high-head-pressure trips. When this motor fails, you'll typically see the system running with no airflow over the condenser, leading to rapid high-pressure lockout, compressor overheating, or a complete no-cooling condition. In some cases the motor hums but won't spin — a sign of a seized bearing or open winding. OEM part numbers HD46GK230, HD46GL230, and HD52GK208 are all covered by this listing.

  • Specs: 1 HP | 208/230V | 3-Phase | 1140 RPM | 60 Hz | NEMA Frame 48 | 3.0 A Full Load | CCW Rotation | 0.5" Dia × 2.5" Long Shaft | CSA Listed | Thermally Protected | Class B Insulation | Continuous Air-Over Duty
  • OEM vs Generic: This is a genuine Carrier Factory Authorized Part (RCD/Genteq lineage) built to exact Carrier tolerances. Aftermarket motors often deviate in shaft length, rotation, or amperage draw — causing premature failure or nuisance tripping on commercial packaged equipment. For a unit of this class, OEM is strongly recommended.
  • Install difficulty: 3/5 — Three-phase motor replacement requires safe lockout/tagout of 208/230V three-phase power before any work begins. Tools needed: multimeter (verify phase rotation), 5/16" and 3/8" nut drivers, needle-nose pliers, torque wrench. Always verify CCW rotation and match shaft dimensions before mounting fan blade. Check fan blade balance after installation — unbalanced blades accelerate bearing wear.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our warehouse in original factory packaging.

Compatibility: Direct OEM replacement for Carrier model PH1SPA090000AAAA packaged units. Cross-references OEM part numbers HD46GK230, HD46GL230, and HD52GK208, as well as Genteq/GE model 5K39UFL701AS. Verify voltage (208/230V), phase (3-phase), HP (1), and shaft specs on your unit nameplate before ordering. Need fitment confirmation? Our HVAC parts specialists verify compatibility before you buy — contact us today and ship the same day.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Carrier OEM Carrier Condenser Fan Motor 1 HP 208/230V 3Ph — PH1SPA090000AAAA?
Yes. This is the factory-specified OEM fan motor for the Carrier OEM Carrier Condenser Fan Motor 1 HP 208/230V 3Ph — PH1SPA090000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Carrier OEM Carrier Condenser Fan Motor 1 HP 208/230V 3Ph — PH1SPA090000AAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
