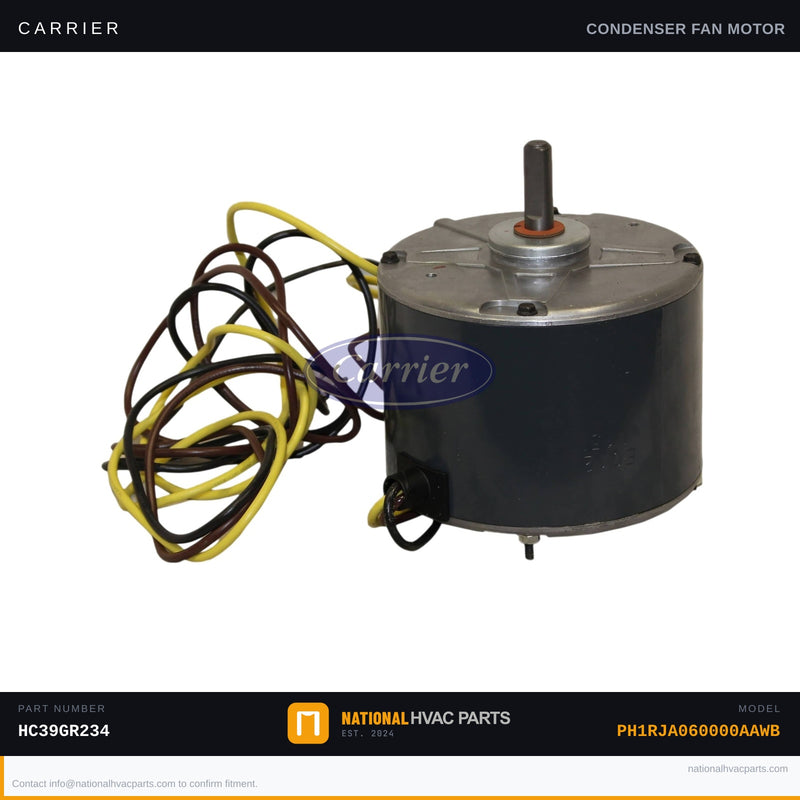

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V for Model PH1RJA060000AAWB

This is the factory OEM condenser fan motor (part number HC39GR234) for the Carrier PH1RJA060000AAWB packaged heat pump unit. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat and keep the refrigerant circuit operating efficiently. When this motor fails, you'll notice the outdoor unit running but no fan blade spinning, the system tripping on high-pressure lockout, or the compressor overheating and shutting down within minutes of startup — all signs that this motor needs immediate replacement.

• Specs: 1/4 HP | 208-230V | 1-Phase | 1100 RPM | 1.5 Amps | 60 Hz | Frame 48 | CWLE rotation | 1/2" shaft diameter | 1.5" shaft length | Vertical mount only
• OEM vs Generic: This factory-matched OEM motor is wound to exact Carrier tolerances for current draw, RPM, and thermal protection. Generic motors often vary in rotation direction, shaft length, or thermal trip point — mismatches that can damage the fan blade assembly or void equipment warranties.
• Install difficulty: 3/5 — Requires disconnecting power at the disconnect box, removing the top panel/fan guard, unbolting the motor bracket, and re-wiring from the original motor. Tools needed: 5/16" and 3/8" nut drivers, wire strippers, multimeter, and capacitor discharge tool. Always photograph all wiring before disconnecting. Replace the run capacitor at the same time to protect the new motor.
• Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse in original Carrier/Genteq packaging.

Compatibility: Engineered as the direct OEM replacement for Carrier model PH1RJA060000AAWB packaged heat pump units. Cross-references GE Genteq model 5KCP39GGY910S. Verify voltage, HP, RPM, and rotation on your unit's data plate before ordering. Not sure it fits? Our HVAC parts specialists verify fitment before you buy — contact us today and ship it out the same day.
