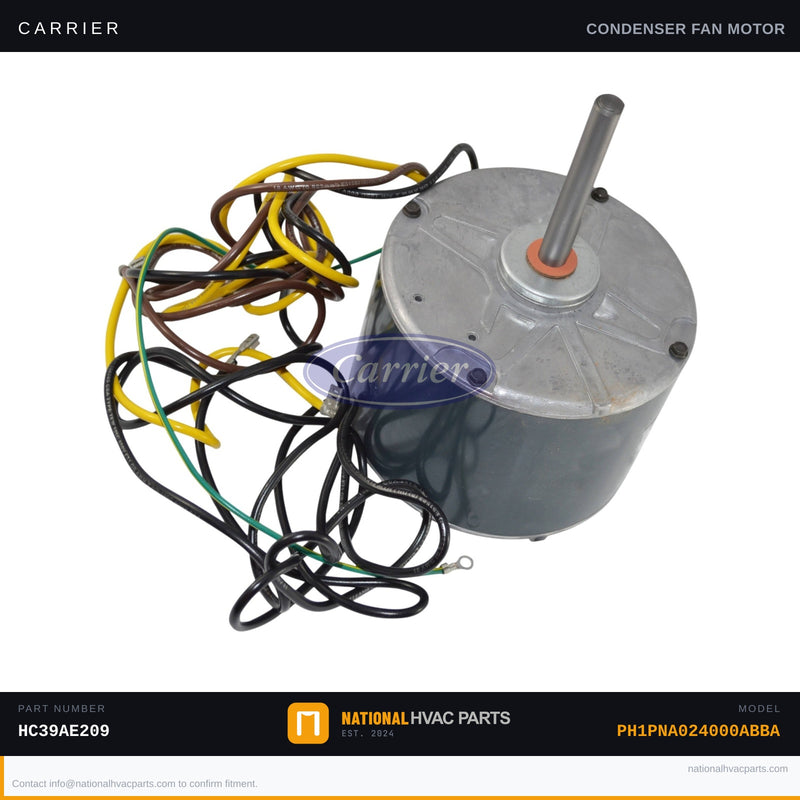

OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM — PH1PNA024000ABBA
OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM — PH1PNA024000ABBA
OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM — PH1PNA024000ABBA
Carrier

OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM — PH1PNA024000ABBA

SKU: CARRIE-PH1PNA024000ABBA-FAN_MOTOR-HC39AE209 Brand: Carrier
✓ Guaranteed to fit PH1PNA024000ABBA — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM for Model PH1PNA024000ABBA

This is the genuine OEM factory-replacement condenser fan motor for the Carrier PH1PNA024000ABBA split-system air conditioner, identified by OEM part number HC39AE209 (also cross-references GE Genteq 5KCP39FGR560S). The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat from the refrigerant. When this motor fails, the system will either overheat and trip on high-pressure lockout, run with no outdoor fan movement, or shut down entirely within minutes of startup — symptoms that demand immediate replacement to avoid compressor damage.

  • Specs: 1/4 HP | 1100 RPM | 208/230V | 1 Phase | 60 Hz | 1.4–1.5 A | CCW rotation (shaft end) | 1/2" x 3.5" shaft | 5-5/8" body diameter | TEAO (Totally Enclosed Air Over) enclosure | 5 MFD/370VAC run capacitor required | 50" leads with automatic thermal reset
  • OEM vs Generic: This is the factory-matched OEM unit built to exact Carrier tolerances for the HC39AE209 specification. Generic aftermarket motors often vary in shaft dimensions, rotation direction, and thermal protection ratings — mismatches that risk fan blade clearance issues, vibration, and compressor overload. OEM guarantees a drop-in fit every time.
  • Install difficulty: 3/5 — Disconnect power at the disconnect box and the breaker before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, needle-nose pliers, multimeter, and a capacitor discharge tool. Always photograph all wiring and lead connections before removal. We strongly recommend replacing the 5 MFD run capacitor at the same time — a degraded capacitor is a leading cause of new motor burnout within the first season.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders ship the same business day from our warehouse — get your system back online fast.

Compatibility: Engineered for the Carrier PH1PNA024000ABBA condenser unit. Verify your unit's data plate lists a 1/4 HP, 1100 RPM, 208/230V, CCW condenser fan motor before ordering. Cross-references: GE Genteq 5KCP39FGR560S, 3S033, 5KCP39FGZ039S; Nidec/US Motor K55HXKMU-0210, K055KMU0210011B. Not sure it fits? Our parts specialists verify fitment before you order — call or chat today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Carrier OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM — PH1PNA024000ABBA?
Yes. This is the factory-specified OEM fan motor for the Carrier OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM — PH1PNA024000ABBA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Carrier OEM Carrier Condenser Fan Motor 1/4 HP 1100 RPM — PH1PNA024000ABBA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
