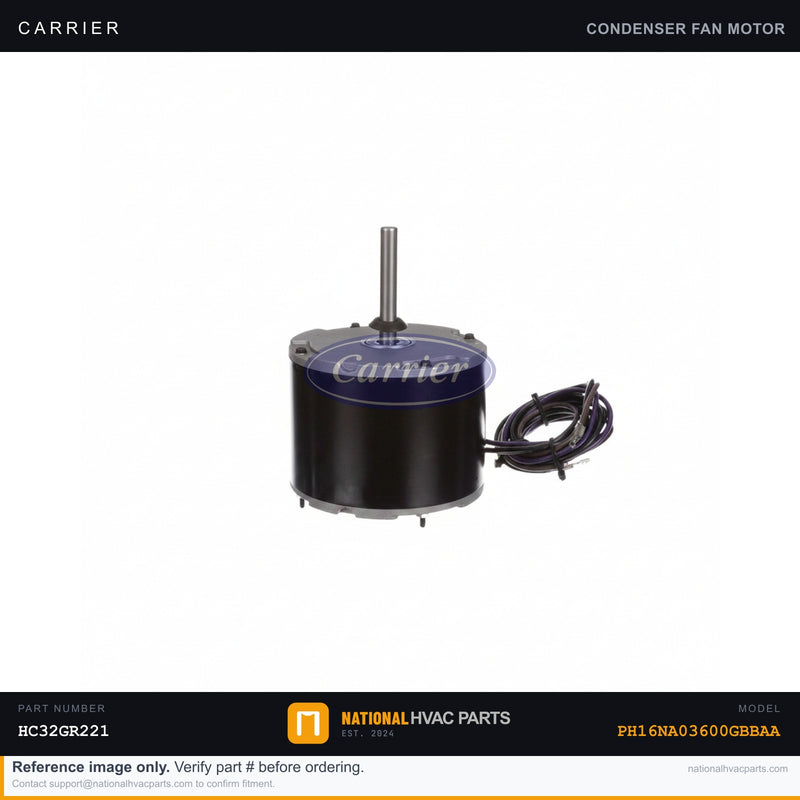

OEM Carrier Heat Pump Condenser Fan Motor for PH16NA03600GBBAA

The condenser fan motor moves air across the outdoor coil of your Carrier PH16NA03600GBBAA heat pump, dumping heat during cooling and gathering it during heating. Lose that airflow and the system overheats within minutes. A failing motor shows itself fast: the fan blade sits still while the compressor labors, the bearings grind or shriek, the motor housing gets too hot to touch, or the unit trips out on its high-pressure or thermal limit. If the fan only kicks on after you nudge the blade, the bearings or start capacitor are usually shot. This genuine OEM condenser fan motor is built to the PH16NA cabinet's mounting pattern, shaft size, and electrical spec — typically 1/4 HP, 208/230V single-phase, roughly 825 RPM, with the correct rotation and sealed ball bearings rated for outdoor exposure. It runs off the FAN leg of your dual run capacitor. Check HP, RPM, voltage, and rotation against your existing motor's nameplate before ordering. OEM matters because the fan motor's airflow protects the compressor. Generic universal motors often spin at a different RPM or torque curve and move the wrong volume of air, raising head pressure and overworking the compressor until it fails early. A mismatched shaft, rotation, or mounting bracket invites vibration and quick bearing wear. Install difficulty: 3 of 5. Tools needed: 1/4" and 5/16" nut drivers, a hex/Allen key for the blade set screw, a multimeter, and a photo of the motor and capacitor wiring. #1 safety warning: kill the breaker to the outdoor unit and discharge the run capacitor before unhooking the motor leads — those terminals hold a dangerous charge even with the power already off. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PH16NA03600GBBAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
