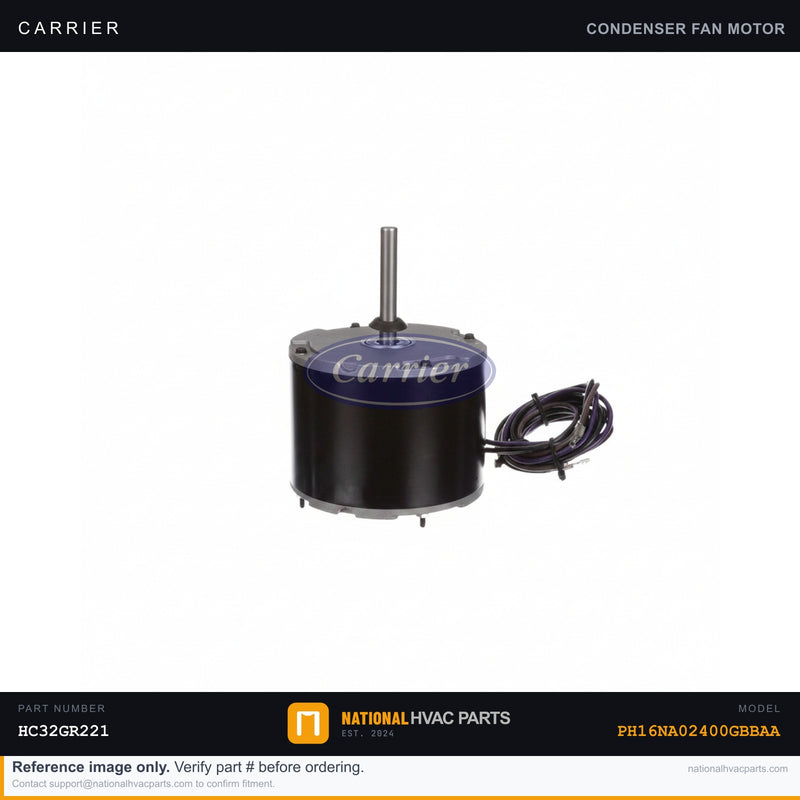

OEM Carrier Condenser Fan Motor for Heat Pump PH16NA02400GBBAA

The condenser fan motor spins the outdoor fan blade that pulls air across the condenser coil, rejecting the heat your Carrier PH16NA02400GBBAA heat pump removes from the home. When it weakens or fails you'll notice the outdoor fan not spinning while the compressor hums, a fan that runs slow or wobbles, a hot condenser cabinet, the breaker tripping, or the system cooling poorly and shutting down on high-pressure as head pressure climbs. A seized bearing or burned winding often smells hot and can trip the unit within minutes of startup. This OEM condenser fan motor is a 208/230V PSC (permanent split capacitor) motor, typically in the 1/4 HP class at roughly 825-1100 RPM, totally enclosed for outdoor service, with the correct shaft diameter, rotation, and mounting for the PH16NA02400GBBAA cabinet. It pairs with a run capacitor of the matched MFD rating. Confirm HP, RPM, rotation (CW/CWLE), voltage, and shaft size against your old motor before ordering. A generic motor with the wrong RPM or HP moves the wrong volume of air — too little raises head pressure and trips high-pressure safeties, shortening compressor life; the wrong rotation or shaft pushes air backward or won't mount. OEM motors match Carrier's airflow design and use sealed bearings rated for continuous outdoor duty, where cheaper motors use lighter bearings and thinner windings that fail within a season or two. Install difficulty: 3/5. Tools: 1/4" and 5/16" nut drivers, a socket for the blade nut, a multimeter, and a marker to note wire colors. #1 safety warning: kill power at the disconnect and breaker, and discharge the run capacitor through an insulated resistor before touching motor leads — capacitors hold a lethal charge long after power is off. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PH16NA02400GBBAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
