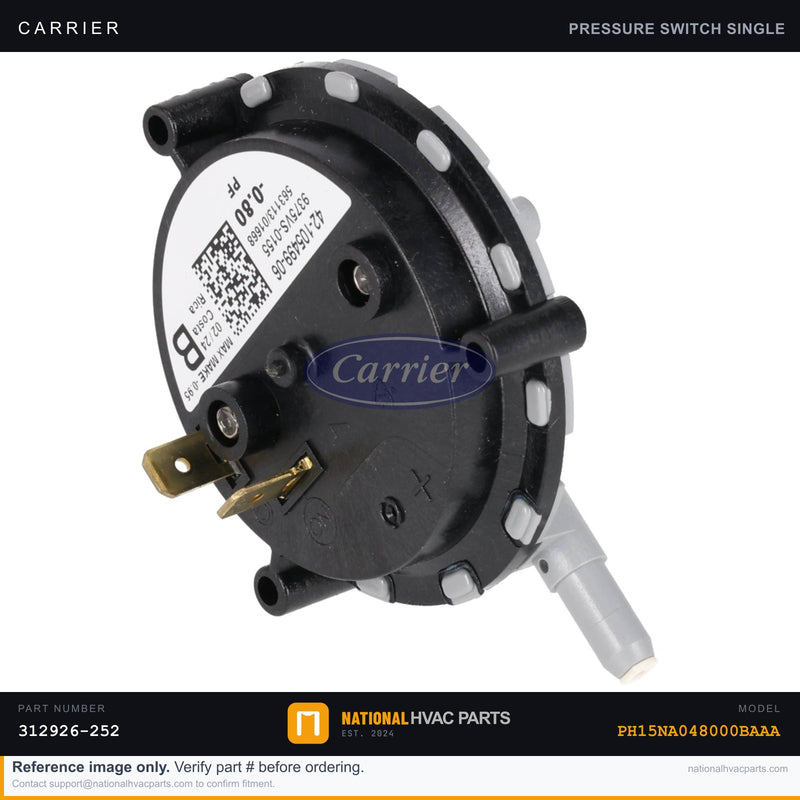

OEM Carrier Low Pressure Switch for PH15NA048000BAAA Heat Pump

The pressure switch is a refrigerant-side safety that protects your PH15NA048000BAAA heat pump from running under dangerous pressure. A high-pressure switch opens if discharge pressure climbs too high (blocked airflow, dirty coil, overcharge); a low-pressure switch opens on a loss of charge or restricted flow. When it trips or fails, you'll see the system lock out and refuse to start, short-cycle on and off, or shut down on hot days when head pressure peaks. A switch stuck open prevents the compressor from ever starting; one stuck closed removes the protection entirely. This OEM pressure switch is calibrated to the exact cut-out and cut-in setpoints your Carrier unit was engineered for, with the correct refrigerant fitting, electrical connector, and normally-open/normally-closed configuration. The trip points match the compressor's safe operating envelope precisely. Why OEM matters here: a pressure switch is a safety device, and the setpoints are the whole point. A generic switch with the wrong cut-out pressure either nuisance-trips a healthy system or — far worse — lets the compressor run past its safe limit, risking a ruptured line or a destroyed compressor. Loose-tolerance aftermarket switches drift over temperature and lose calibration. The factory setpoints are not something to guess at. Install difficulty: 2 of 5. Tools: an adjustable or correct line wrench, a multimeter for continuity, and manifold gauges if recovery is required. Many switches sit on a Schrader-style port that won't lose charge; others require recovery. Safety first: kill power at the disconnect, and verify whether the port is self-sealing before you remove the switch so you don't vent refrigerant. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PH15NA048000BAAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
