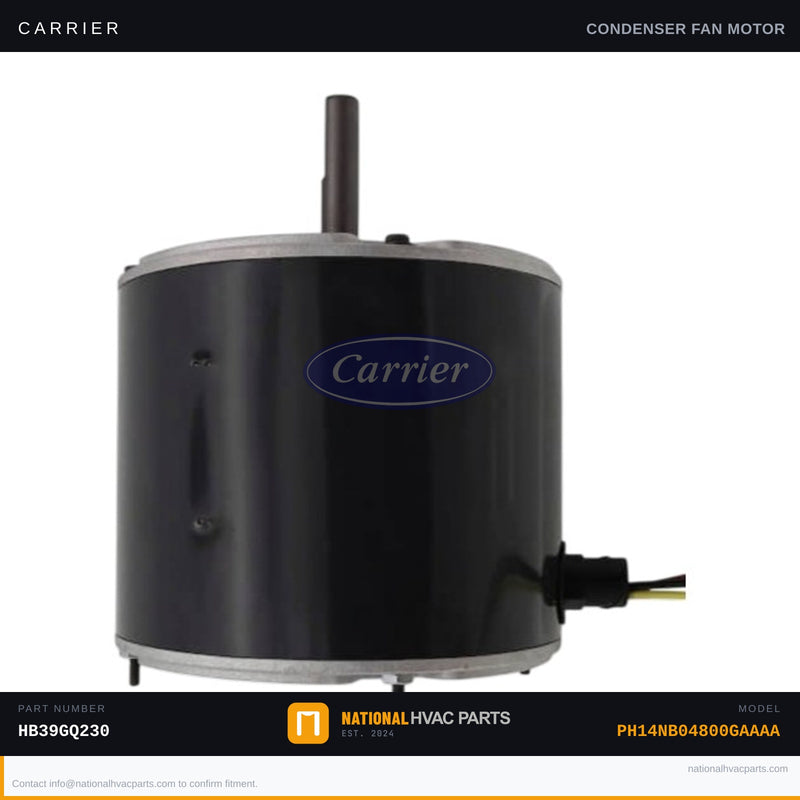

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V 1100 RPM for Model PH14NB04800GAAAA

This is the factory OEM replacement condenser fan motor (part number HB39GQ230) for the Carrier PH14NB04800GAAAA split-system heat pump condenser. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat and enabling proper system operation. When this motor fails, the outdoor fan stops spinning — causing the compressor to overheat and trip on high-pressure lockout, leaving you with a system that runs briefly then shuts off, or won't cool or heat at all. Common failure symptoms include a humming condenser unit with a stationary fan blade, tripped breakers, or a system that short-cycles on a hot day.

• Specs: 1/4 HP | 208-230V | 1100 RPM | 1-Phase | 60 Hz | 1.40A | Frame Size 48 | CW Rotation | Shaft: 0.5″ diameter × 4.23″ long | Stud mountable
• OEM vs Generic: This is a genuine Carrier factory-authorized OEM motor built to exact tolerances for the PH14NB04800GAAAA. Generic aftermarket motors frequently deviate in shaft length, rotation direction, and amp draw — causing premature failure, voided warranties, and system damage. OEM is always the correct choice for a long-term fix.
• Install difficulty: 3/5 — Requires safely disconnecting power at the disconnect box and breaker before starting. Tools needed: nut driver set, wire stripper, needle-nose pliers, multimeter. Always photograph existing wiring before removal. Important: Replace your run capacitor at the same time — a worn capacitor is a leading cause of motor failure and will shorten the life of a new motor.
• Warranty & Shipping: 1-year OEM manufacturer warranty. In stock and ships same business day from our warehouse. Questions? Our HVAC parts specialists verify fitment before you order — just ask.

Compatibility: Direct OEM replacement for Carrier PH14NB04800GAAAA split-system heat pump condensers. This motor replaces superseded part numbers HC39GQ230 and HC39GE226. Verify voltage (208-230V), horsepower (1/4 HP), rotation (CW), and shaft dimensions on your unit's data plate before ordering. Requires a 45/5 MFD 370V run capacitor — order yours today and avoid a repeat service call.
