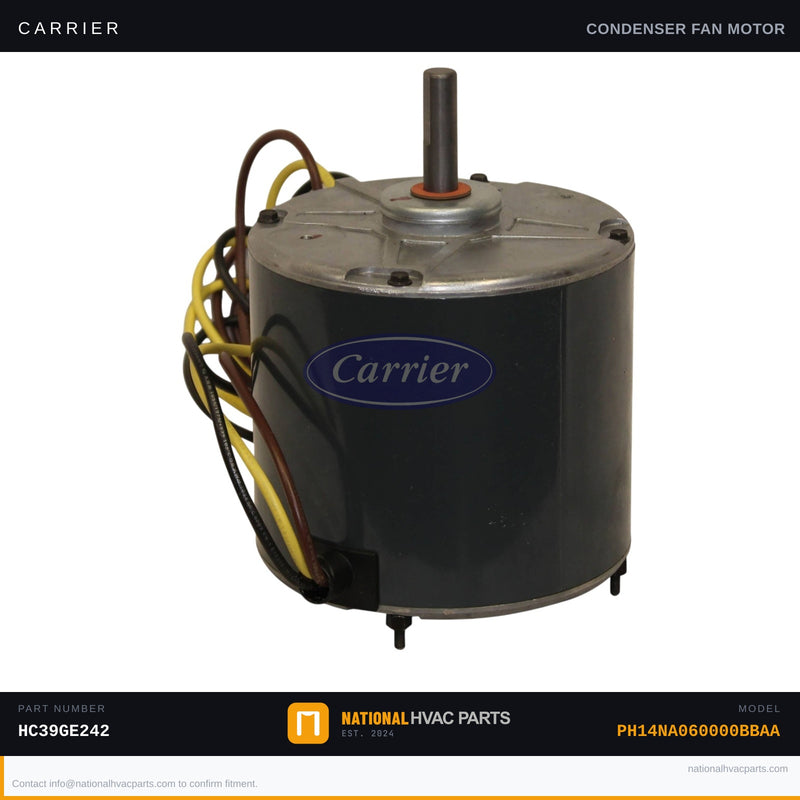

OEM Carrier Condenser Fan Motor 1/4 HP 825 RPM for Model PH14NA060000BBAA

This is the factory-authorized OEM condenser fan motor (part number HC39GE242, superseded by HB39GQ232) for the Carrier PH14NA060000BBAA split-system heat pump. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to reject heat during cooling and absorb heat during heating. When this motor fails, you'll notice the outdoor unit running with no fan movement, the system short-cycling on high-pressure lockout, or the compressor shutting down on thermal overload due to insufficient airflow. In some cases the motor runs but makes loud grinding, squealing, or rattling noises — all signs of bearing failure requiring immediate replacement.

• Specs: 1/4 HP | 208/230V | 60 Hz | 1.20 Amps | 825 RPM | Single Phase | 48Y Frame | Clockwise Rotation (CWLE) | 1.75" Shaft | Closed Enclosure — factory-matched to Carrier PH14NA060000BBAA specifications
• OEM vs Generic: This is a genuine Carrier Factory Authorized Part built to exact OEM tolerances. Generic aftermarket motors frequently deviate in RPM, shaft diameter, and rotation direction — mismatches that can damage the fan blade, strain the capacitor, and void equipment warranties. OEM is always the correct choice for a 5-ton heat pump protecting a large investment.
• Install Difficulty: 3/5 — Disconnect and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, needle-nose pliers, multimeter, and a capacitor discharge tool. Mark fan blade orientation and wire colors with tape before removal. Always replace the run capacitor simultaneously — a worn capacitor is a leading cause of premature motor failure.
• Warranty: 1-year OEM factory warranty on parts. Ships same business day from our stocked warehouse — no waiting on special orders.

Compatibility: Direct OEM replacement for Carrier model PH14NA060000BBAA. Original part number HC39GE242 has been superseded by HB39GQ232 — both are fulfilled as the current production unit. Also fits select Bryant and Payne models sharing this motor specification. Confirm voltage, HP, RPM, rotation, and shaft diameter against your unit's data plate before ordering. Our HVAC parts specialists are available to verify fitment — order with confidence and get your system back online fast.
