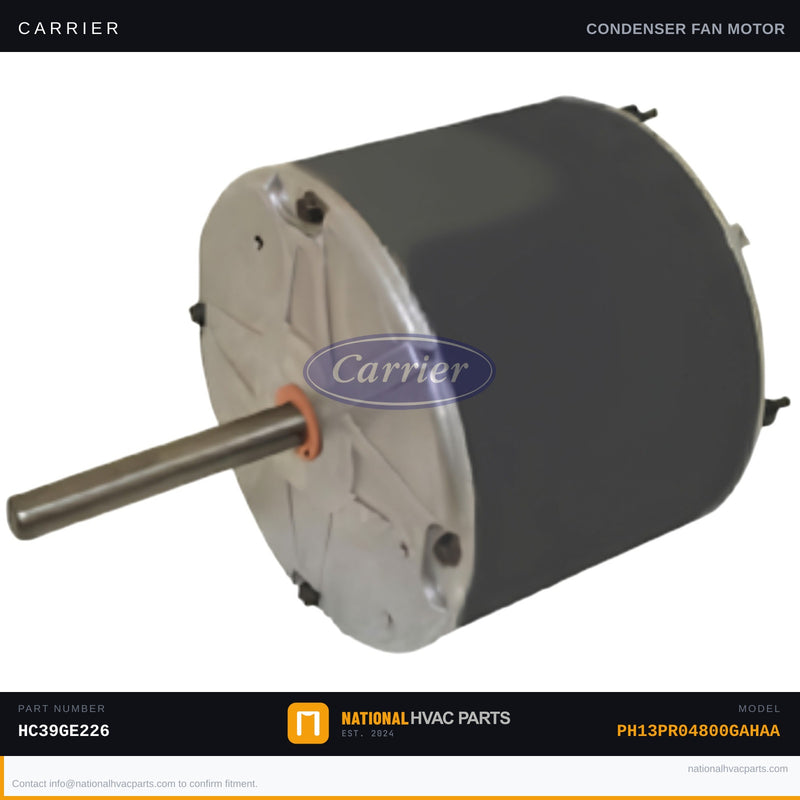

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V for Model PH13PR04800GAHAA (HC39GE226)

This OEM condenser fan motor is the factory-specified replacement for the Carrier PH13PR04800GAHAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to expel heat absorbed from your home. When this motor fails, the outdoor unit will run without airflow — causing the compressor to overheat, trip a high-pressure limit, or short-cycle. Common failure symptoms include the outdoor fan blade not spinning, the unit shutting down on a hot day, or a humming sound with no fan movement.

• Specs: 1/4 HP | 208-230V | 1-Phase | 1100 RPM | Frame 48 | CW Rotation (shaft up) | 0.5" Diameter × 4.23" Shaft | Stud Mountable | Requires 10 MFD 370V Run Capacitor (sold separately)
• OEM vs Generic: This OEM-spec motor is wound and balanced to factory tolerances, ensuring correct airflow CFM and amperage draw. Generic motors often deviate in RPM or rotation direction, risking compressor damage from inadequate heat rejection.
• Install Difficulty: 3/5 — Disconnect power and lock out the breaker before starting. Note the fan blade pitch depth and wire colors before removing the old motor. Tools needed: nut driver set, needle-nose pliers, multimeter, and a helper to support the fan assembly. Replace the run capacitor at the same time to prevent premature motor failure.
• Warranty: 1-year manufacturer warranty on OEM units. In-stock and ships same business day from our warehouse.

Compatibility: Engineered for Carrier model PH13PR04800GAHAA split-system condensers. OEM part number HC39GE226 has been superseded — verify voltage, HP, RPM, rotation, and shaft diameter against your unit's data plate before ordering. Cross-references include HC39GE226A, HB39GQ230, and HB39GQ230A. Not sure it fits? Our HVAC parts specialists verify fitment before you buy — call or chat today and get your system back up fast.
