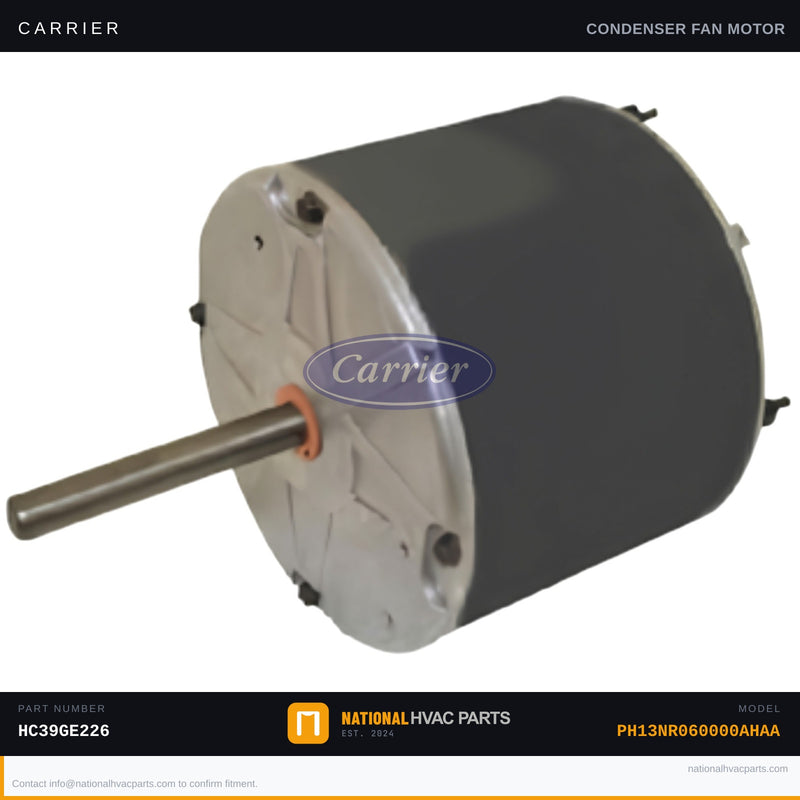

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V for Model PH13NR060000AHAA

This OEM Carrier condenser fan motor (part number HC39GE226) is the factory-specified replacement for the Carrier PH13NR060000AHAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the outdoor unit may run briefly before shutting down on high-pressure lockout, stop cooling entirely, or produce a loud hum with no fan movement — all classic signs of a seized or burned-out condenser fan motor that demands immediate replacement.

• Specs: 1/4 HP | 1100 RPM | 208-230V | 1.4A | 60 Hz | Single Phase | Frame 48 (5-5/8" diameter) | 0.5" shaft diameter | Clockwise rotation (shaft-end view) | Stud mountable | Requires separate 10 MFD 370V run capacitor
• OEM vs Generic: OEM motors are wound and balanced to exact factory tolerances, ensuring correct RPM, amperage draw, and bearing life matched to your Carrier unit. Generic motors frequently deviate in rotation direction, shaft length, or current draw — risking compressor damage from inadequate condenser airflow.
• Install difficulty: 3/5 — Discharge and lock out power before starting. Photograph all wiring and blade pitch orientation before removal. Tools needed: multimeter, 5/16" and 3/8" nut drivers, blade pitch gauge, wire nuts. Note: a new 10 MFD 370V run capacitor is strongly recommended at time of motor replacement.
• Warranty: 1-year OEM manufacturer warranty. In-stock units ship same business day from our warehouse.

Compatibility: Engineered as the direct OEM replacement for Carrier model PH13NR060000AHAA. Also cross-references to Bryant and Payne units sharing the HC39GE226 / HC39GE226A specification. Always verify HP, voltage, RPM, rotation, and shaft dimensions against your unit's data plate before ordering. Our fitment team is available to confirm compatibility before you buy — call or chat today. Order now and ship today.
