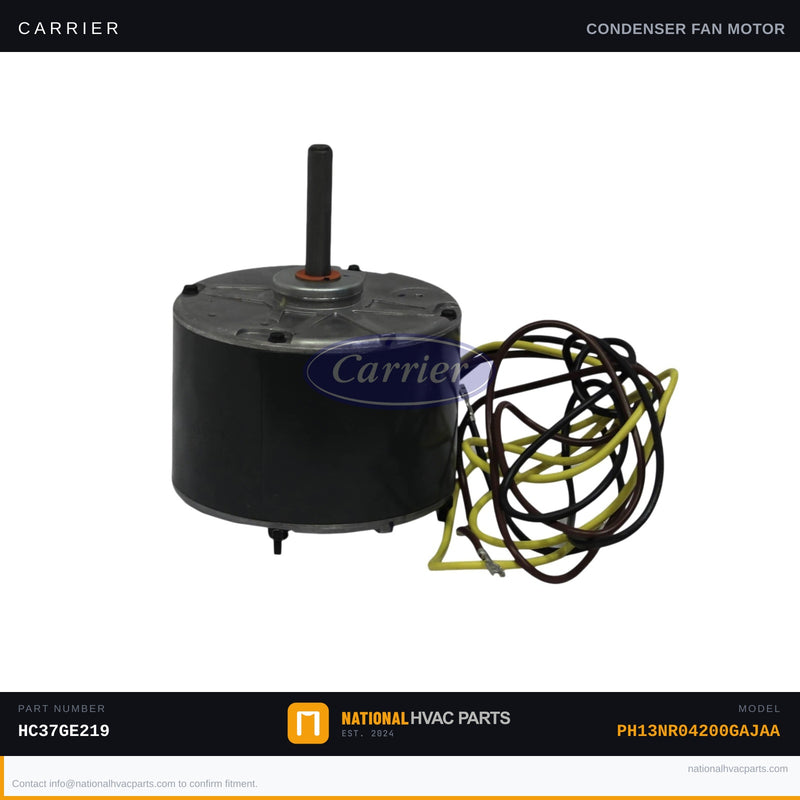

OEM Carrier Condenser Fan Motor 1/5 HP 1100 RPM 208/230V — HC37GE219 for Model PH13NR04200GAJAA

This is the OEM factory-specified condenser fan motor for the Carrier PH13NR04200GAJAA split-system air conditioner, carrying OEM part number HC37GE219. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to expel heat. When this motor fails, the compressor overheats and the system trips on high-pressure lockout — resulting in no cooling, a unit that short-cycles, or an outdoor fan that hums but won't spin.

• Specs: 1/5 HP | 1100 RPM | 208/230V | 1-Phase | 48-Frame | Clockwise rotation (shaft up) | Factory OEM part HC37GE219 (superseded by HB38GR219)
• OEM vs Generic: OEM motors are wound to exact factory torque and thermal protection specs. Generic alternatives typically run looser tolerances on amp draw and thermal cutout thresholds, which can accelerate bearing wear and shorten compressor life due to inadequate airflow across the coil.
• Install difficulty: 3/5 — Disconnect power and discharge capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and wire strippers. Note blade pitch, wire routing, and shaft orientation before removal. Always inspect and replace the run capacitor when installing a new motor — a weak capacitor is frequently the root cause of motor burnout.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Designed as a direct OEM replacement for Carrier PH13NR04200GAJAA condensing units. Always verify HP, voltage, RPM, and rotation direction against your unit's data plate before ordering. Note that HC37GE219 has been factory-superseded by HB38GR219 — both designations are fulfilled with the current production unit. Need help confirming fitment? Our HVAC parts specialists verify compatibility before every order ships.
