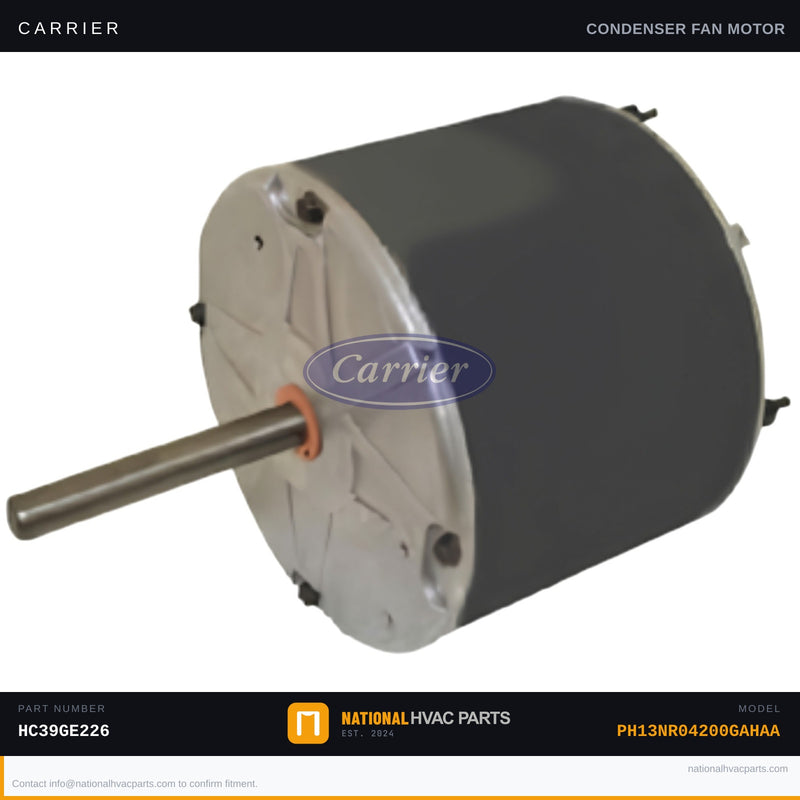

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V for Model PH13NR04200GAHAA (HC39GE226)

This OEM-specification condenser fan motor is the factory-matched replacement for the Carrier PH13NR04200GAHAA heat pump condenser unit, corresponding to OEM part number HC39GE226 (current successor: HB39GQ230). The condenser fan motor drives the outdoor fan blade to expel heat from the refrigerant coil. When this motor fails, your system will overheat, trip the high-pressure limit, or simply stop cooling — often with the compressor running but no airflow from the outdoor unit. Left unaddressed, a failed condenser fan motor can cause compressor burnout, turning a relatively minor repair into a major replacement.

• Specs: 1/4 HP | 208–230V | 1100 RPM | 1-Phase | 1.4A | 60 Hz | Frame 48 | Clockwise rotation (shaft up) | 0.5" diameter × 4.23" long shaft | Stud mountable | Requires 10 MFD 370V run capacitor (sold separately)
• OEM vs Generic: This OEM-spec motor is wound and balanced to Carrier factory tolerances, ensuring correct amperage draw and RPM stability. Generic motors often run outside tolerance, causing premature bearing wear and compressor stress from unbalanced airflow.
• Install difficulty: 3/5 — Disconnect power at the breaker before beginning. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, wire stripper, multimeter. Photograph all wiring before disconnecting. Inspect and replace the fan blade if worn or unbalanced — a bad blade can destroy a new motor within one season.
• Warranty: 1-year replacement warranty. Ships same business day from our warehouse when ordered before 3PM local time.

Compatibility: Designed for Carrier PH13NR04200GAHAA heat pump condensers. Also crosses to Bryant and Payne units using HC39GE226, HC39GE226A, HB39GQ230, HC39GQ230, and GE/Genteq model 5KCP39FGY563S. Always verify HP, voltage, RPM, rotation, and shaft dimensions against your unit's data plate before ordering. Our HVAC parts specialists are available to confirm fitment — just reach out before you order.
