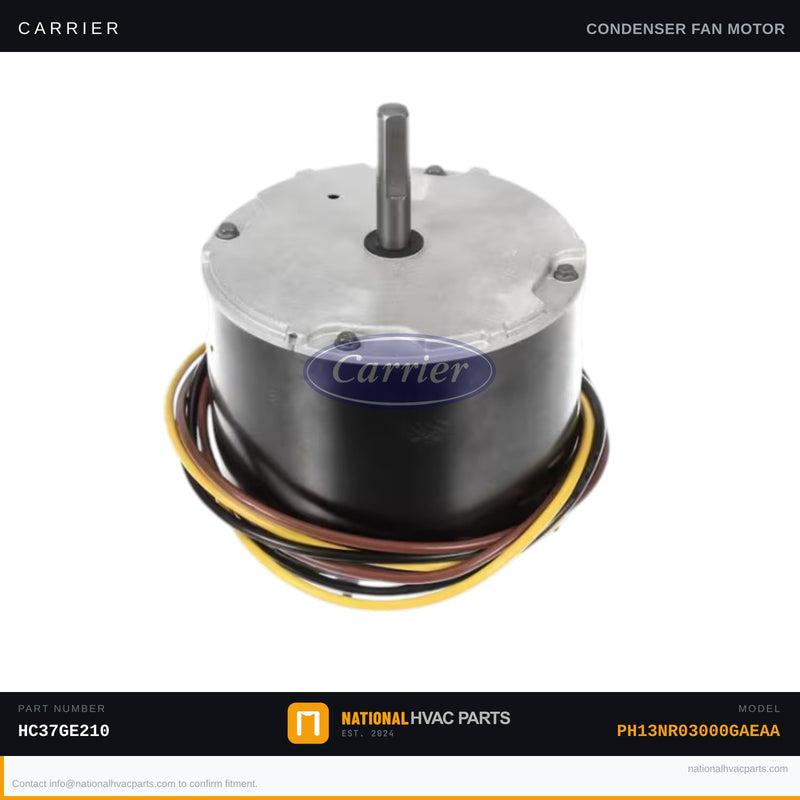

OEM Carrier Condenser Fan Motor 1/5 HP 208/230V 825 RPM for Model PH13NR03000GAEAA

This is the factory-specified OEM condenser fan motor for the Carrier PH13NR03000GAEAA R-410A heat pump. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat and protect the compressor from thermal overload. When it fails, symptoms include the outdoor unit running with no fan movement, the system tripping on high-pressure lockout, or the compressor overheating and shutting down within minutes of startup. Two OEM part numbers apply to this model — HC37GE210 (primary) and HC38GE231 (alternate/updated supersession) — both are factory-matched replacements.

• Specs: 1/5 HP | 208/230V | 825 RPM | 1-Phase, 60 Hz | 0.95A FLA | Frame 48 | Rotation: CWLE (Clockwise Looking at Lead End) | Shaft: 0.5" Diameter × 1.9" Long | Stud Mountable | Closed Enclosure | Requires 7.5 MFD 370V run capacitor (sold separately — highly recommended to replace capacitor simultaneously)
• OEM vs Generic: This is a genuine Carrier factory-authorized motor built to exact torque, RPM, and thermal protection specs for the PH13NR03000GAEAA. Generic aftermarket motors frequently deviate in rotation direction, shaft length, or FLA rating, risking premature compressor failure and voiding your system warranty. OEM is the only safe choice on R-410A heat pumps where efficiency certification (SEER/HSPF) depends on matched components.
• Install Difficulty: 3/5 — Disconnect and lock out power at the breaker before beginning. Tools needed: 5/16" and 3/8" nut drivers, needle-nose pliers, multimeter, and a capacitor discharge tool. Mark or photograph all wire connections before removal. Note correct fan blade pitch and blade-to-shroud clearance before reinstalling. Always replace the run capacitor (7.5 MFD 370V) when replacing the motor — a degraded capacitor will shorten the new motor's life significantly.
• Warranty: 1-year OEM manufacturer warranty. In-stock and ships same business day from our warehouse. OEM part numbers HC37GE210 and HC38GE231 covered.

Compatibility: Fits Carrier model PH13NR03000GAEAA R-410A heat pump condensing unit. Verify the existing motor's HP, voltage, RPM, rotation, and shaft dimensions against your unit's data plate before ordering. Not sure? Our fitment team will cross-reference your model and serial number before you buy — no guesswork, no returns.
