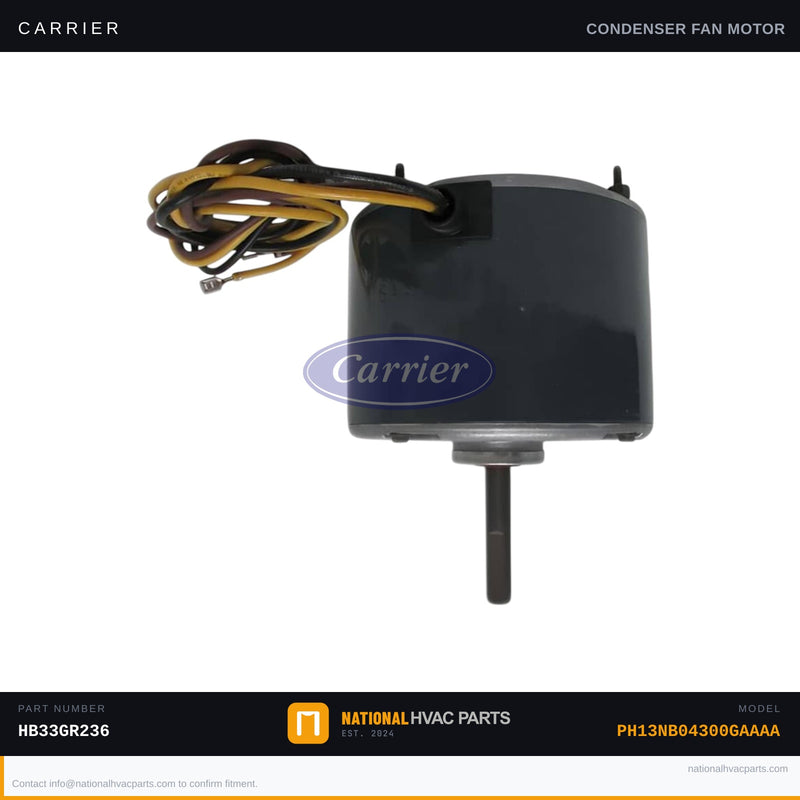

OEM Carrier Condenser Fan Motor 1/10 HP 230V 1100 RPM for Model PH13NB04300GAAAA

This OEM condenser fan motor is the factory-specified replacement for the Carrier PH13NB04300GAAAA split-system air conditioner, sold under OEM part number HB33GR236 (current replacement: HB33GQ231). The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering the high-pressure limit switch and causing the system to shut down — often on the hottest days when you need it most. Common symptoms include the outdoor fan not spinning, the compressor cycling off on high pressure, or audible grinding and humming from the condenser cabinet.

• Specs: 1/10 HP | 208–230V | 1-Phase | 1100 RPM | Frame 48 | 5-5/8" diameter | Counter-clockwise rotation (shaft up) | CWLE mounting
• OEM vs Generic: This is a Factory Authorized Parts motor built to exact Carrier engineering tolerances. Generic motors may vary in RPM calibration, frame dimensions, and thermal overload ratings — risking premature failure or voiding equipment warranties.
• Install difficulty: 3/5 — Disconnect power and discharge the run capacitor before starting. Tools needed: nut driver set, wire stripper, multimeter, and a helper to support the fan assembly. Always photograph wiring connections before disconnecting. Note: replace the run capacitor at the same time to prevent premature motor burnout.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our warehouse — get your system back online fast.

Compatibility: Engineered as the direct OEM replacement for Carrier model PH13NB04300GAAAA. Also fits select Bryant and Payne models sharing the same motor specification. Verify HP, voltage, RPM, rotation, and shaft diameter against your unit's data plate before ordering. Our team is available to confirm fitment — contact us before you order if you have any questions.
