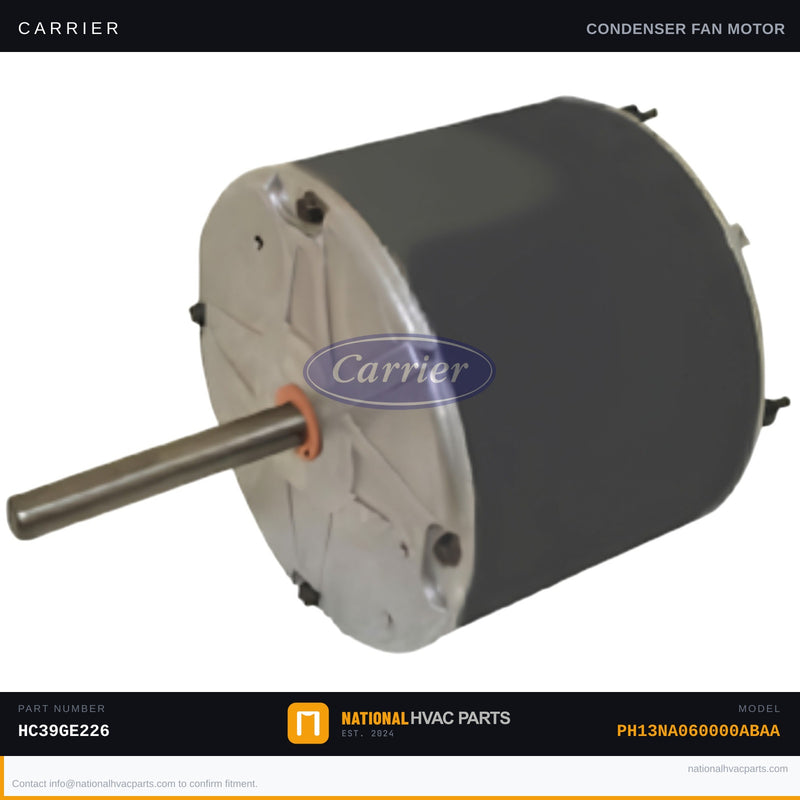

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V — HC39GE226 for Model PH13NA060000ABAA

This OEM condenser fan motor is the factory-specified replacement for the Carrier PH13NA060000ABAA heat pump condenser unit. The condenser fan motor drives the outdoor fan blade, drawing ambient air across the condenser coil to reject heat and maintain efficient refrigerant condensing. When this motor fails, the outdoor unit will overheat, trigger a high-pressure lockout, or simply stop producing cooling or heating — often with the compressor still running and humming. Left unaddressed, a failed fan motor can cause compressor burnout within minutes.

• Specs: 1/4 HP | 208-230V | 60 Hz | 1-Phase | 1100 RPM | Frame 48 | Clockwise rotation (shaft up) | 0.5" shaft diameter | Stud mountable | Requires 10 MFD 370V run capacitor (sold separately)
• OEM vs Generic: This OEM motor is wound and balanced to Carrier factory tolerances, ensuring correct RPM, amperage draw, and thermal protection trip points. Generic motors frequently run off-speed or off-current, shortening compressor life and voiding equipment warranties.
• Install difficulty: 3/5 — Disconnect and lock out power at the disconnect box before beginning. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, wire stripper, multimeter. Photograph all wiring connections before removal. Note fan blade pitch and orientation — reinstall blade at the same depth on the shaft. Always replace the run capacitor when replacing the motor.
• Warranty: 1-year OEM factory warranty against defects. Orders ship same business day from our warehouse when placed before 3PM local time.

Compatibility: Engineered as the direct OEM replacement for Carrier model PH13NA060000ABAA heat pump condensers. Superseded OEM part number: HB39GQ230. Verify voltage, HP, and RPM against your unit's data plate prior to ordering. Our team is available to confirm fitment before you buy — just reach out.
