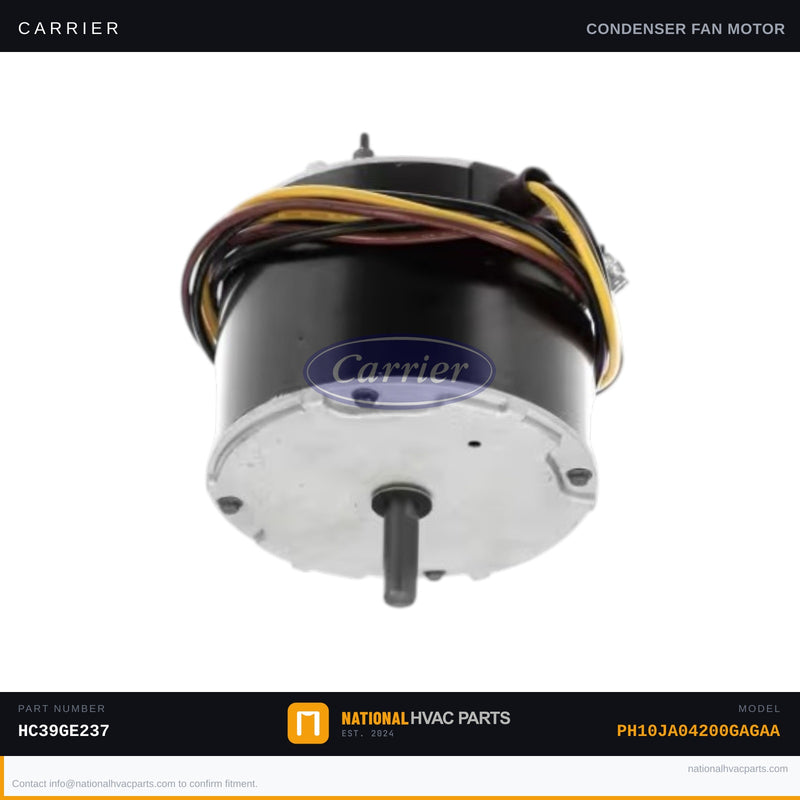

OEM Carrier Condenser Fan Motor 1/4 HP 230V 1100 RPM for Model PH10JA04200GAGAA

This is the genuine OEM Carrier condenser fan motor for the PH10JA04200GAGAA heat pump/condensing unit. The condenser fan motor drives the outdoor fan blade that draws ambient air across the condenser coil, dissipating heat absorbed from the refrigerant. Without a properly functioning motor, the unit will overheat, triggering high-pressure lockout or causing compressor damage. Common failure symptoms include the outdoor fan not spinning, the unit shutting off on high-pressure fault shortly after startup, or the motor running hot and intermittently stopping due to thermal overload. Covers OEM part numbers HC39GE237 (primary) and HC40GE232 (alternate).

• Specs: 1/4 HP | 208-230V | 60 Hz | 1-Phase | 1100 RPM | 48 Frame | Clockwise (CW) rotation viewed from shaft end | Factory-matched tolerances
• OEM vs Generic: OEM motors use factory-spec windings, bearings, and thermal overload protection rated exactly for this unit. Generic motors frequently carry looser RPM and amperage tolerances that stress the compressor and shorten system life.
• Install difficulty: 3/5 — Requires disconnecting line voltage at the disconnect box and capacitor discharge before handling. Tools needed: multimeter, 5/16" nut driver, blade puller (recommended), needle-nose pliers. Always photograph existing wiring and rotation direction before removal. Verify shaft diameter and blade pitch before reinstalling fan blade.
• Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Factory-specified replacement for Carrier model PH10JA04200GAGAA. Verify voltage, HP, RPM, frame size, and rotation on your unit's data plate before ordering. Both OEM part numbers HC39GE237 and HC40GE232 are covered by this listing — contact our team for fitment confirmation before ordering.
