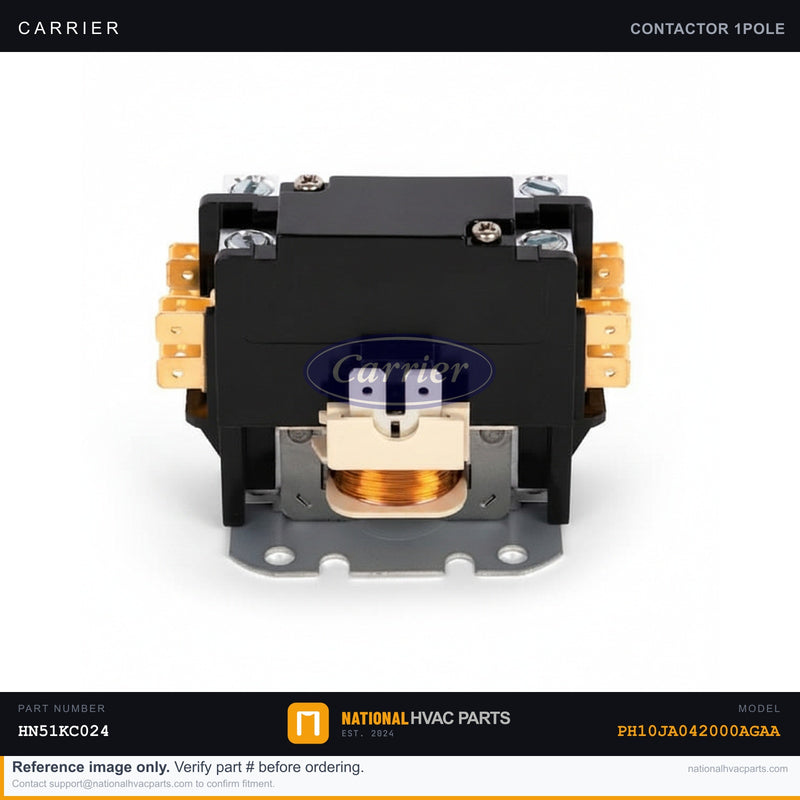

OEM Carrier 1-Pole Definite Purpose Contactor for PH10JA042000AGAA

The contactor is the heavy-duty switch that delivers line voltage to the compressor and outdoor fan motor in your Carrier PH10JA042000AGAA heat pump. When the thermostat calls, the 24V coil pulls the contacts closed and energizes the high-amperage circuit. Contactors live a hard life — every cycle arcs across the contact faces. When they fail, homeowners notice a loud hum or buzz from the outdoor unit, a system that won't start cooling, or — more dangerously — a contactor welded closed that keeps the compressor running even after the thermostat is satisfied. Pitted or chattering contacts also cause intermittent operation and breaker trips. Specs: This is a definite purpose contactor with a 24VAC coil and silver-alloy contacts rated for the unit's compressor full-load amps (commonly 30–40A per pole). Pole configuration and coil voltage must match the original; verify the FLA rating and coil voltage stamped on the old part against the replacement. OEM vs Generic: Contact metallurgy is what separates a quality contactor from a cheap one. Genuine Carrier contactors use properly sized silver-cadmium contacts that resist pitting and welding under repeated inrush current. Generic units with undersized or low-grade contacts pit and weld far faster, leading to chatter, voltage drop to the compressor, and eventual stuck-closed failure that can burn out the compressor windings. Install difficulty: 2 of 5. Tools: 1/4" and 5/16" nut drivers, a multimeter, and needle-nose pliers. SAFETY: kill the breaker and pull the disconnect before touching the contactor — line voltage is present, and the nearby run capacitor can hold a lethal charge even with power off. Discharge it before working. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PH10JA042000AGAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
