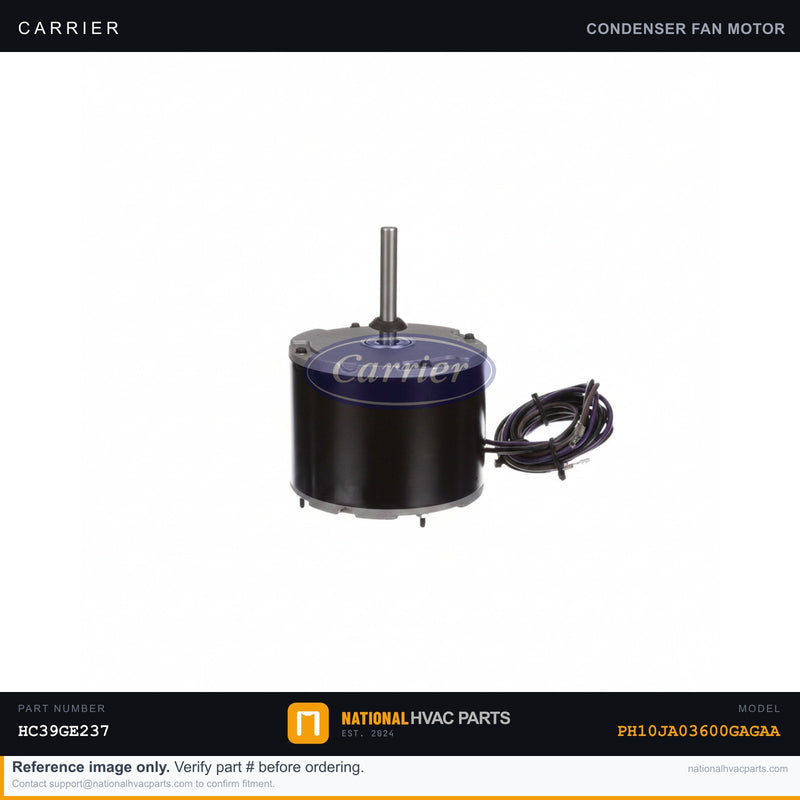

OEM Carrier Condenser Fan Motor for PH10JA03600GAGAA Heat Pump

The condenser fan motor is the workhorse that spins the outdoor fan blade, pulling air across the condenser coil so your system can reject heat in cooling mode and absorb it in heating mode. When it begins to fail you'll notice the outdoor unit humming but not spinning, the fan starting slowly or stopping mid-cycle, warm air from the supply registers, and in many cases a tripped breaker or a compressor that shuts down on its high-pressure safety because heat has nowhere to go. A seized motor often smells hot or burnt near the top of the unit. This is a direct-OEM replacement matched to the PH10JA03600 platform. Carrier condenser fan motors on this chassis are typically 1/4 to 1/3 HP, 208/230V, single-phase, 825 RPM, reversible-rotation PSC designs with a dedicated run capacitor and a sealed ball or sleeve bearing rated for continuous outdoor duty. Shaft diameter, mounting bolt pattern, and lead configuration match the factory motor so the original blade and capacitor carry straight over. OEM matters here because the motor must pair correctly with its run capacitor and blade pitch. Generic motors often ship with mismatched HP, RPM, or rotation and lower-grade bearings that run hotter, drift out of balance, and fail again in a season or two — sometimes taking the capacitor with them. The factory winding and bearing spec keep amp draw in range and protect the compressor. Install difficulty: 3 of 5. Tools: 1/4" and 5/16" nut drivers, an adjustable wrench for the blade set screw, and a multimeter. #1 safety warning: shut off the disconnect AND discharge the run capacitor with an insulated resistor before touching any wiring — a charged capacitor can deliver a dangerous shock even with power off. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PH10JA03600GAGAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
