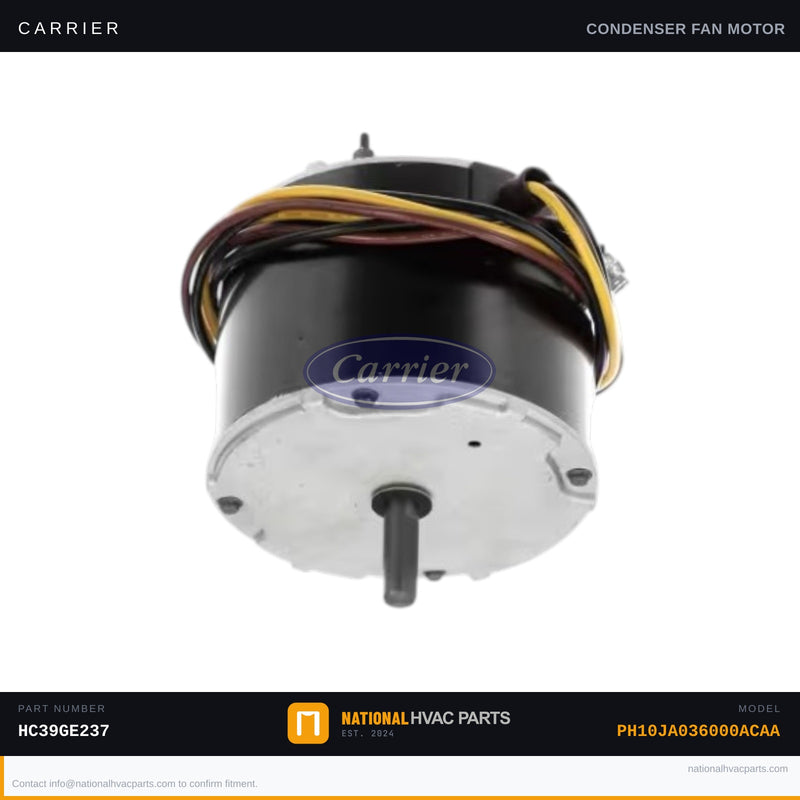

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V 1100 RPM for Model PH10JA036000ACAA

This OEM condenser fan motor is the factory-specified replacement for the Carrier PH10JA036000ACAA heat pump / packaged unit. The condenser fan motor draws ambient air across the outdoor condenser coil, rejecting heat absorbed from your home and protecting the compressor from thermal overload. When this motor fails, the system loses its ability to reject heat — leading to high-pressure lockout, compressor overheating, and a complete loss of cooling or heating capacity. Common failure symptoms include the outdoor fan not spinning, sluggish fan startup, loud grinding or buzzing sounds from the condenser cabinet, or the system short-cycling on high-pressure cutout.

• Specs: 1/4 HP | 208-230V, 1-Phase, 60 Hz | 1100 RPM | Frame 48Y (5-5/8" diameter) | CWLE rotation | 1.40 Amps FLA | 3-wire leads | Requires 5 MFD / 370V run capacitor (sold separately)
• OEM vs Generic: OEM motors (HC39GE237 / HC40GE230) are manufactured to exact Carrier Factory Authorized Parts specifications, ensuring correct RPM, rotation, and amp draw. Generic aftermarket motors frequently deviate from factory tolerances, risking compressor damage and voiding equipment warranties.
• Install difficulty: 3/5 — Disconnect and lock out power at the disconnect box before opening the condenser cabinet. Tools needed: 5/16" and 1/4" nut drivers, adjustable wrench, needle-nose pliers, multimeter. Photograph all wiring connections before removal. Note fan blade pitch and orientation — reinstall at the same depth on the shaft. Strongly recommended: replace the run capacitor at the same time to prevent premature motor re-failure.
• Warranty: 1-year OEM factory warranty against defects in materials and workmanship. In-stock and ships same business day from our warehouse.

Compatibility: Engineered as a direct OEM drop-in replacement for Carrier model PH10JA036000ACAA. OEM part numbers HC39GE237 and HC40GE230 (also cross-references GE/Genteq model 5KCP39JGL107S). Verify voltage, HP, RPM, and rotation on your unit's motor nameplate before ordering. Our HVAC parts specialists are available to confirm fitment — order with confidence and get back to comfort faster.
