OEM Carrier Defrost Control Board 24V for PH10JA030000AEAA
Carrier

OEM Carrier Defrost Control Board 24V for PH10JA030000AEAA

SKU: CARRIE-PH10JA030000AEAA-CONTROL_BOARD-HK32EA001 Brand: Carrier
✓ Guaranteed to fit PH10JA030000AEAA — or your money back. Terms

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

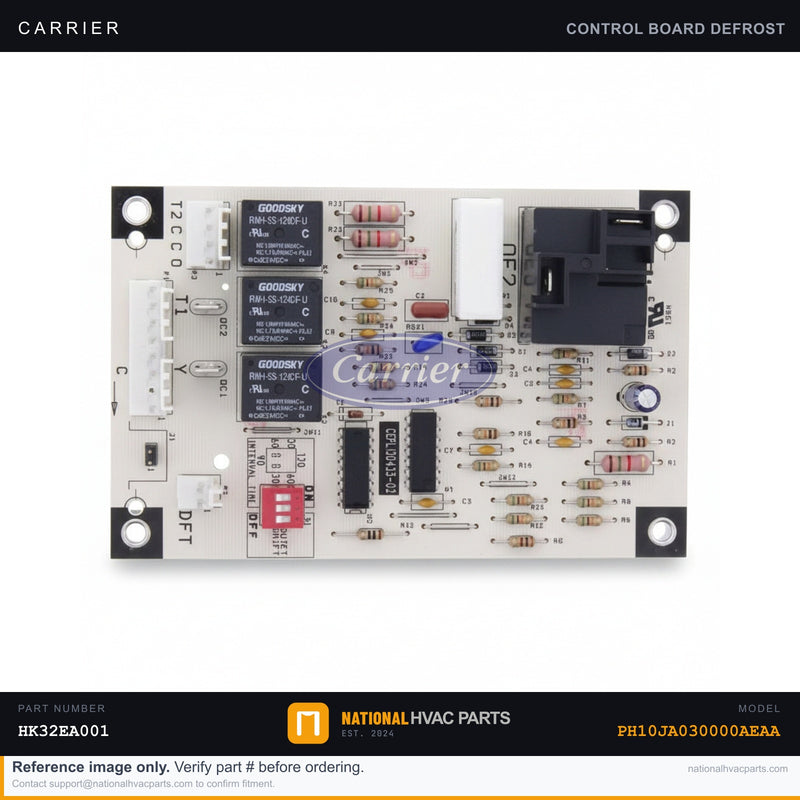

OEM Carrier Defrost Control Board HK32EA001 for Model PH10JA030000AEAA

The Carrier HK32EA001 Defrost Control Board is the factory-specified OEM replacement for the PH10JA030000AEAA heat pump. This board manages the critical defrost cycle that prevents ice accumulation on the outdoor coil during heating operation. It receives temperature and time inputs, then energizes the reversing valve and outdoor fan to initiate and terminate defrost as needed. When this board fails, common symptoms include the outdoor unit freezing over completely, the system getting stuck in heating or cooling mode, erratic defrost cycling, or a heat pump that runs but delivers no effective heating output in cold weather.

  • Specs: 24V control circuit | OEM Part # HK32EA001 | Cross-references: CEPL130524-01, CEBD430524-06A | Dimensions approx. 6" × 4" | Single-phase | 5A rated
  • OEM vs Generic: This is a genuine Carrier Factory Authorized Part — not an aftermarket clone. OEM boards carry factory-matched firmware, relay ratings, and connector pinouts. Generic boards may use lower-rated relays and ±tolerance components that shorten service life and can cause erratic defrost timing.
  • Install difficulty: 3/5 — Requires disconnecting 24V control wiring harnesses and low-voltage connectors. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, phone camera for pre-removal wiring photos. Always shut off power at the disconnect and breaker before starting. Label all wires prior to removal.
  • Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Direct OEM replacement for Carrier model PH10JA030000AEAA heat pump units. Also fits select Bryant and Payne heat pump models sharing the HK32EA001 specification — verify your unit's data plate and existing board part number before ordering. Our technical team is available to confirm fitment before you buy.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $99
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Control Board fit my Carrier PH10JA030000AEAA?
Yes. This is the factory-specified OEM control board for the Carrier PH10JA030000AEAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the control board on my Carrier PH10JA030000AEAA?
Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.
My HVAC system is completely dead. What could be wrong?
Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.
Is this control board compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier control board?
OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
