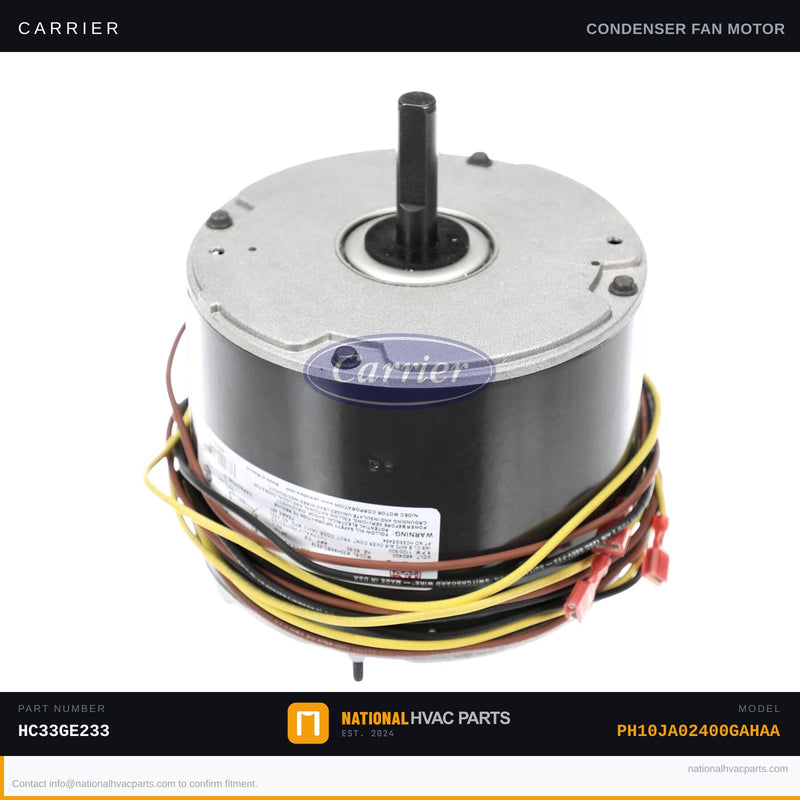

OEM Carrier Condenser Fan Motor for PH10JA02400GAHAA

The condenser fan motor is the workhorse that spins the outdoor fan blade, pulling ambient air across the condenser coil to reject the heat your system absorbs from inside the home. When this motor begins to fail, homeowners typically notice the outdoor unit humming but not spinning, a fan that runs slow or seizes when hot, warm air from the supply registers, and in many cases a tripped breaker or a compressor that overheats and short-cycles on its internal overload. A motor with worn bearings will often squeal or grind before it quits entirely. This is a direct-replacement OEM condenser fan motor matched to the horsepower, RPM, rotation, voltage, and shaft diameter specified for this Carrier unit. Pay attention to HP rating, RPM (typically 1075 or 825 for condenser duty), CW/CCW rotation viewed from the shaft end, and the number of speeds — mismatching any of these causes overheating or poor airflow. It pairs with a correctly sized run capacitor; replace both together for best service life. Why OEM matters here: aftermarket "universal" motors often run hotter, use lower-grade sleeve bearings instead of sealed ball bearings, and ship with a generic mounting pattern that forces bracket modification. An undersized or wrong-rotation motor moves less CFM across the coil, raising head pressure and shortening compressor life. OEM keeps the original airflow, bearing rating, and bracket fit. Install difficulty: 3 of 5. Tools: 1/4" and 5/16" nut drivers, multimeter, and a socket set for the fan blade set screw. SAFETY: shut off the disconnect and the breaker, then discharge the run capacitor with an insulated resistor before touching any motor leads — capacitors hold a lethal charge. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PH10JA02400GAHAA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
