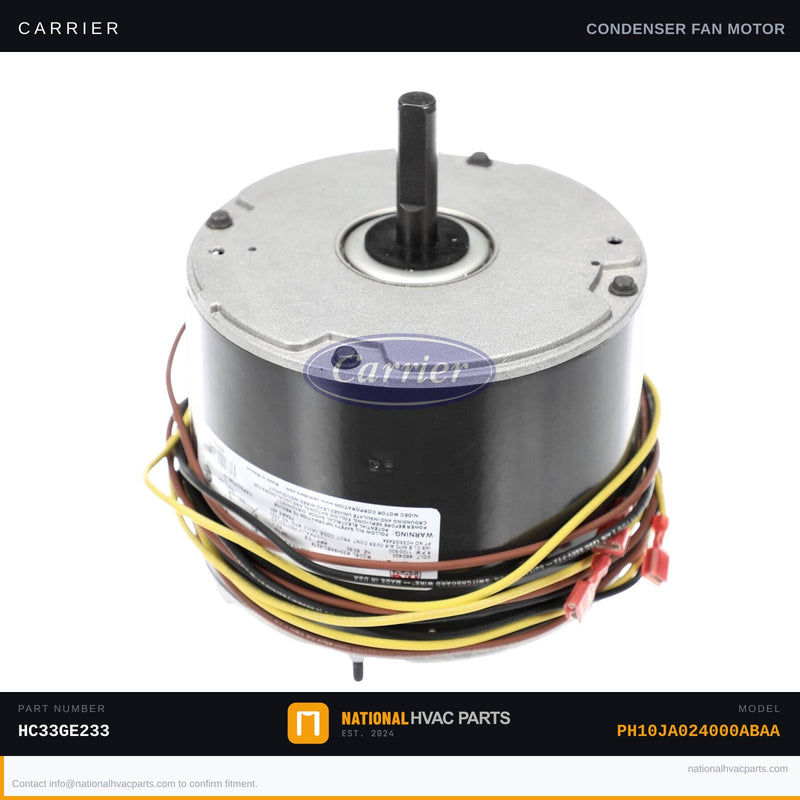

OEM Carrier Condenser Fan Motor HC33GE233 — 1/10 HP 208/230V for Model PH10JA024000ABAA

This is the factory OEM condenser fan motor for the Carrier PH10JA024000ABAA, replacing part number HC33GE233. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to dissipate heat and maintain proper refrigerant pressure. When this motor fails, the condenser unit will overheat and trip the high-pressure limit, causing the system to shut down — often on the hottest days of the year. A failed motor may also present as a humming unit with no fan movement, or intermittent cooling loss.

• Specs: 1/10 HP | 1100 RPM | 208–230V | 60 Hz | 0.75A Full Load | Single Phase | Frame 48 | Clockwise (CW) Rotation | 1.75" Shaft Length | Closed Enclosure | 5 MFD Run Capacitor Required
• OEM vs Generic: This factory-authorized OEM motor is engineered to exact Carrier specifications, including tested RPM for correct airflow, Temprise thermal standards stricter than UL 1995, and liquid-tight lead exit connectors that match the original raceway — no field modifications needed. Generic motors may deviate in RPM, run hotter, and shorten compressor life.
• Install Difficulty: 3/5 — Shut off power at the disconnect and confirm voltage is absent with a multimeter before opening the unit. Photograph all wiring before disconnecting leads. Tools needed: nut driver, wire stripper, multimeter, and a fan blade puller if the shaft has corroded. Always replace the 5 MFD run capacitor at the same time to protect the new motor.
• Warranty: 1-year OEM manufacturer warranty. Ships same business day from our warehouse — order by 3 PM local time.

Compatibility: Direct OEM replacement for Carrier model PH10JA024000ABAA. Also crosses to HC33GE233A, HC34GE234, HC34GE234A, HC33GE230, HC33GE230A, HC33GE232, and HC33GE232A. Verify horsepower, voltage, rotation, and shaft diameter against your unit's data plate before ordering. Our fitment team is standing by to confirm compatibility before you buy.
