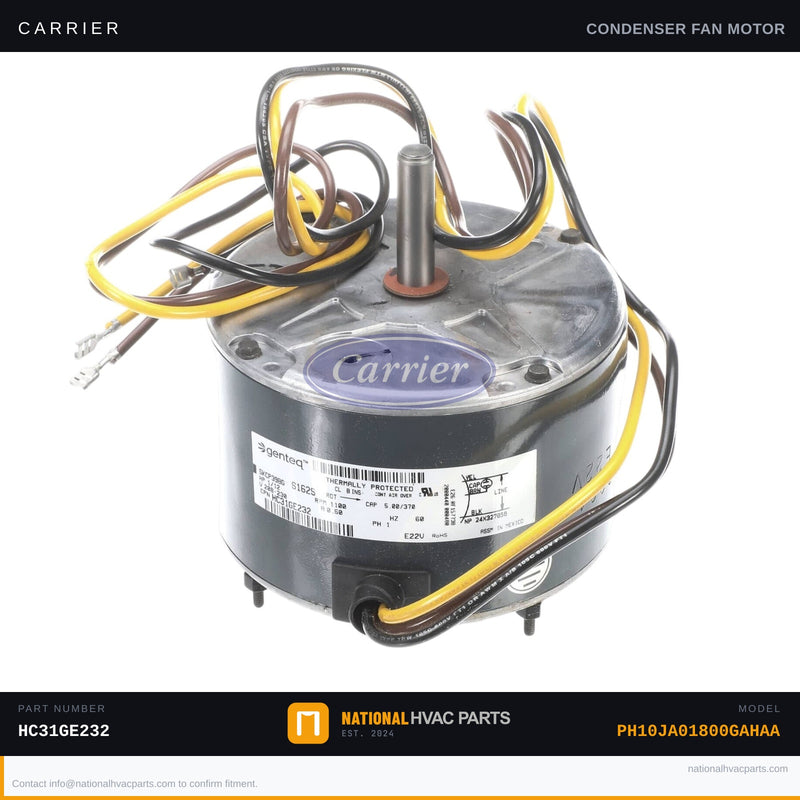

OEM Carrier Condenser Fan Motor 1/12 HP 1100 RPM for Model PH10JA01800GAHAA

This OEM condenser fan motor (part number HC31GE232) is the factory-specified replacement for the Carrier PH10JA01800GAHAA. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat and maintaining proper refrigerant pressures. When this motor fails, the condenser coil overheats, triggering high-pressure lockout — or the fan simply stops spinning entirely, causing the compressor to overheat and shut down on thermal protection. Common symptoms include a humming outdoor unit with no fan movement, the system short-cycling on high head pressure, or a seized/burned-out motor that is hot to the touch.

• Specs: 1/12 HP | 208–230V | 1100 RPM | 0.5A | Single-phase | 60 Hz | Frame 39 | Shaft diameter 0.5" | Shaft length 1.5" | Factory-matched rotation direction
• OEM vs Generic: This is a genuine Carrier Factory Authorized Part™, built to exact OEM tolerances for the PH10JA01800GAHAA. Generic motors often run off-spec RPM and amperage, causing compressor strain, premature bearing failure, and voided equipment warranties.
• Install difficulty: 3/5 — Disconnect power and discharge any capacitor before starting. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, multimeter, and a capacitor discharge tool. Always photograph original wiring orientation before disconnecting leads. Note: always inspect and replace the run capacitor when replacing a condenser fan motor — a weak capacitor is often the root cause of motor failure.
• Warranty: Covered by Carrier's OEM replacement warranty. Ships same business day from our stocked warehouse.

Compatibility: Designed as a direct OEM drop-in replacement for Carrier model PH10JA01800GAHAA. Also replaces HC31GE232A, HC31GE231, and HC32GE230. Verify horsepower, voltage, RPM, frame size, and shaft dimensions against your unit's data plate before ordering. Have a question about fitment? Our HVAC parts specialists verify compatibility before you buy — reach out today and get your system back up and running fast.
