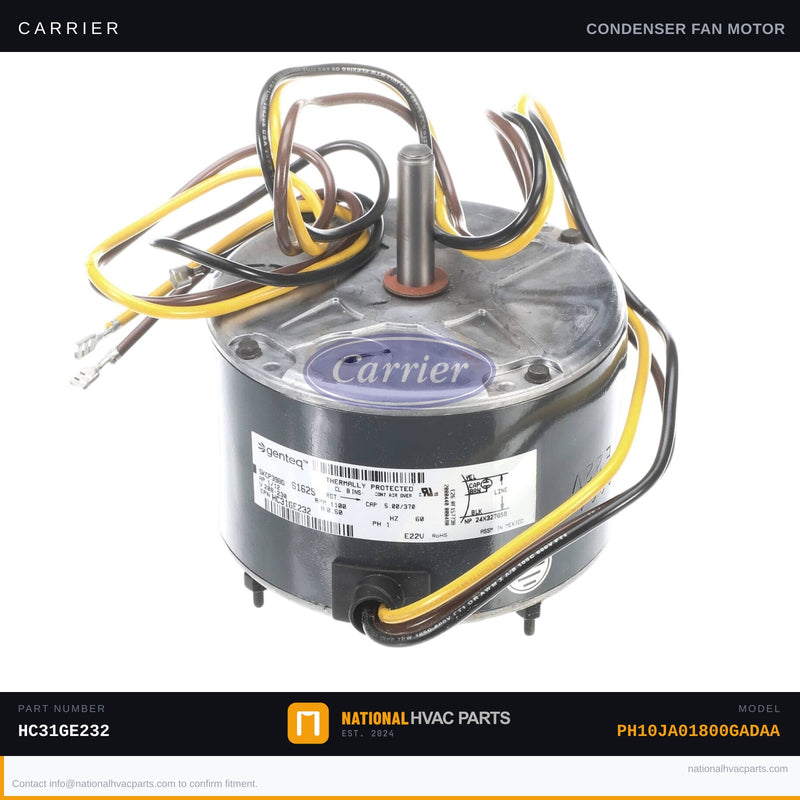

OEM Carrier Condenser Fan Motor 1/12 HP 208-230V for Model PH10JA01800GADAA

This is the OEM factory-specified condenser fan motor for the Carrier PH10JA01800GADAA packaged unit. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat absorbed from your indoor space. When this motor fails, the condenser coil overheats, triggering high-pressure lockouts or full system shutdown — leaving you with no cooling on the hottest days. Common failure symptoms include the outdoor fan not spinning, the unit short-cycling, or the compressor shutting off on high-pressure fault shortly after startup.

• Specs: 1/12 HP | 1100 RPM | 208-230V | 0.5A | Single-phase | 60 Hz | 1/2" shaft diameter | 1.5" shaft length | Frame 39 | Permanent Split Capacitor (PSC)
• OEM vs Generic: This is a genuine Carrier Factory Authorized Part built to exact OEM tolerances for RPM, amperage draw, and rotation direction. Generic aftermarket motors often deviate in shaft length, rotation, or RPM — causing fan blade clearance issues, reduced airflow, and premature bearing failure.
• Install Difficulty: 3/5 — Disconnect power and discharge any run capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, fan blade puller (recommended). Always verify rotation direction (typically CCW when viewed from shaft end) and re-use or replace the run capacitor during installation. Photograph all wiring before disconnecting.
• Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Designed as the factory replacement for Carrier model PH10JA01800GADAA packaged units. Also replaces HC31GE232A, HC31GE231, and HC32GE230. Verify horsepower, voltage, RPM, and shaft specifications against your unit's data plate before ordering. Our HVAC parts specialists are available to confirm fitment — contact us before you order if you have any questions.
